4-Port Branch Distribution Box, PMBD3640
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$445.65 each
In Stock
Get 11 Thu, May 15
Order by today, receive Thursday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
0.16 Amps
Description
–

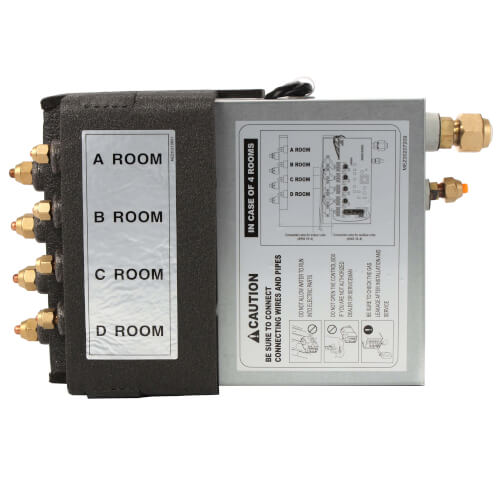

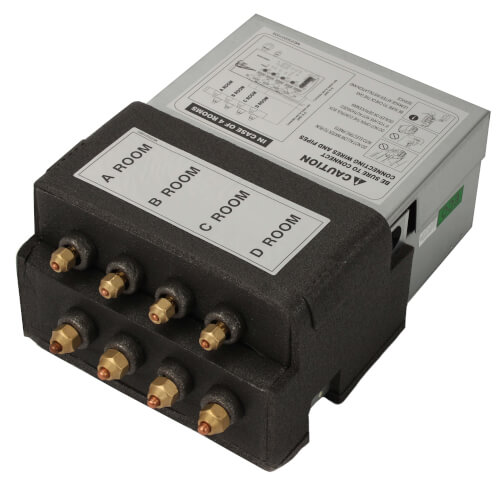

4-Port Branch Distribution Unit
Features:
Features:
- Distributes refrigerant to indoor units
- Internal components are insulated
- Flare joints provided for easy installation
- Compact design
- Piping Connection to Outdoor Unit
- Liquid Line (OD) : 3/8"
- Vapor Line (OD) : 3/4"
- Piping Connection to Indoor Unit
- Liquid Line (OD) : 1/4" (Qty 4)
- Vapor Line (OD) : 3/8" (Qty 4)
- Max Port Capacity Btu/h (each port) : 24,000
- Max Unit Capacity Btu/h (sum of ports) : 72,000
- Power Input (W): 10
Specs
–
| Product Type: | Distribution Unit |
|---|---|
| Voltage: | 208/230V |
| Hertz: | 60 |
| Phase: | 1 |
| Amperage: | 0.16 |
