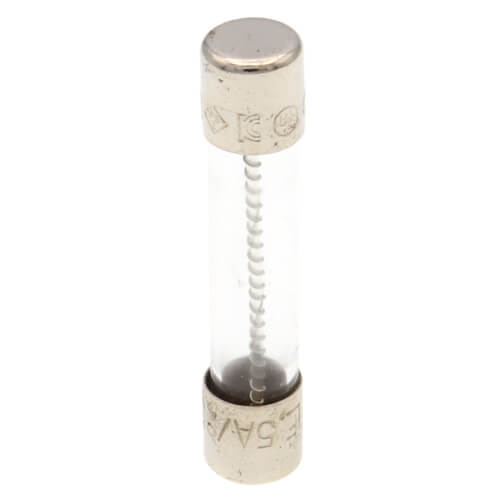

5 Amp Slo-Blo Time-Delay, 3AG Type Glass Fuse (250V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2.77 each
In Stock
Get 58 Wed, Jun 14
More Available
Order by today, receive Wednesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
5 Amps
250v
Glass
Description
–
The 3AG Slo-Blo® fuse solves a broad range of application
requirements while offering reliable performance and cost effective circuit protection.
Features:
Specifications:
Features:
- 313 and 315 series fuses have time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers, and solenoids.
- 3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies.
- Guesswork and time-consuming circuit testing is eliminated.
- This unique design offers the same quality performance characteristics as the standard 3AG fuse design.
Specifications:
- Ampere Rating (A): 5
- Body: Glass Body
- Nominal Melting: I2T (A2sec) 267
- Interrupting Rating: [email protected]
- Marking Code: VX
- Moisture Sensitivity Level: Contact Littelfuse
- Nominal Cold Resistance (Ohms): 0.02135
- Opening: Slo-Blo/Time Lag (T)/Time Delay
- Min Operating Temp °C: -55
- Max Operating Temp (°C): 125
- Package Size: 3AB/3AG (6.3x32mm)
- VAC (V): 250
Specs
–
| Product Type: | Fuse |
|---|---|
| Type: | Electronic |
| Amperage: | 5 |
| Voltage: | 250v |
| Material: | Glass |
