Description

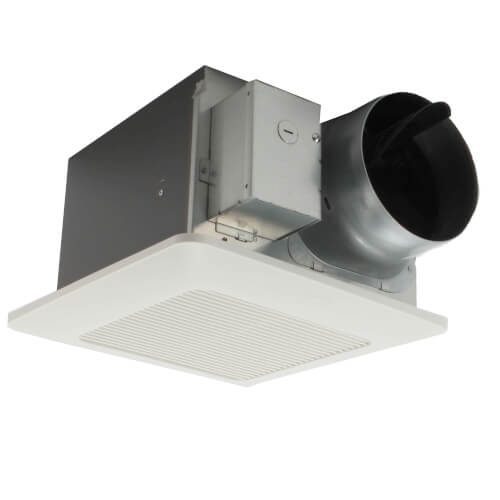

Ventilating fan shall be Low Noise ceiling mount type rated for continuous run. Fan shall be ENERGY STAR® rated and certified by the Home Ventilation Institute (HVI). Evaluated by Underwriters Laboratories and conform to both UL and cUL safety standards.

  • Sones at 110 CFM: <0.3 / 0.9
  • Sones at 130 CFM: <0.3 / <0.3
  • Sones at 150 CFM: <0.3 / 0.5

Motor/Blower:
  • Does not work in variable speed mode
  • Enclosed brushless ECM motor technology rated for continuous run.
  • Fan ventilation rates shall be manually adjustable for 50-80-110 CFM.
  • Power rating shall be 120 volts and 60 Hz.
  • Fan shall be UL and cUL listed for tub/ shower enclosure when GFCI protected
  • Motor equipped with thermal–cutoff fuse.
  • Removable with permanently lubricated plugin motor

Housing:
  • 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing
  • Integrated 6” diameter duct adapter.
  • Built-in damper reduces back drafting and helps with blower door testing.
  • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing. Articulating and expandable installation bracket up to 24".

Ceiling Radiation Damper:
  • WhisperCeiling® DC™ is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).

Warranty:
  • ECM Motor: 6 Years from original purchase date.
  • ALL Parts: 3 Years from original purchase date.
Hide Description
Specs
Application:

Bathroom

Motor:

Condenser

Grille Size:

13"

Motor Bearing:

Ball

Mounting Opening:

10-1/2"

Mount:

Ceiling Recessed

Wattage:

9

6.8

11.8

Material:

Zinc-Aluminum-Magnesium

Duct Size:

6"

Voltage:

120v

Hertz:

60

Air Flow Capacity (CFM):

150

110

130

Features:

Built-in Damper

Energy Star Qualified

Sone:

< 0.3

Thermal Fuse Protection:

Yes

×
