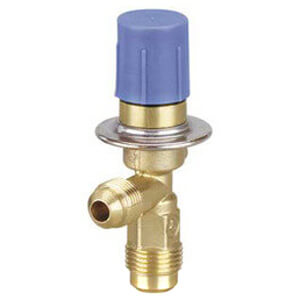

3/8" x 3/8" ODF A7-B Constant Pressure Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$115.49 each
Backorder
Get it Wed, Jun 28 - Thu, Jul 27
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
ODF Connection
3/8"
3/8"
Description
–
- Simple, inexpensive, reliable
- One valve can be employed for all refrigerants. It has an adjustment range of 5"HG to 90 psig
- Optional bypass bleeds provide complete system unloading when a machine is de-energized
- Maintains constant evaporator pressure under all load conditions
- Provides freeze-up protection on a/c systems by keeping the evaporator above the freezing point at low loads
- Automatically protects against motor overloads during system start-up
- Permits use of low starting torque motors
- Protects against overloads caused by high amperage draw by maintaining constant suction even at high (ambient conditions) head pressure
- Balanced port design maintains steady outlet pressure regardless of changing inlet (condenser) pressure
- Large equalizer passageway insures that oil won't affect diaphragm operation under low loads and when valve is mounted upside down
- Constant pressure valves are U.L. & C.S.A. approved
- Not Rated for use with R410A
- UL recognized for maximum operating pressure 500 PIS, 400 PSI low site
Specs
–
| Application: | Ice Cream Machines Freeze Prevention Refrigerant Reclaim Hot Gas Bypass Ice Machines Slush Machines Vending Machines |
|---|---|
| Connection Type: | ODF |
| Inlet Size: | 3/8" |
| Outlet Size: | 3/8" |
| Max Operating Pressure: | 500 psi |
