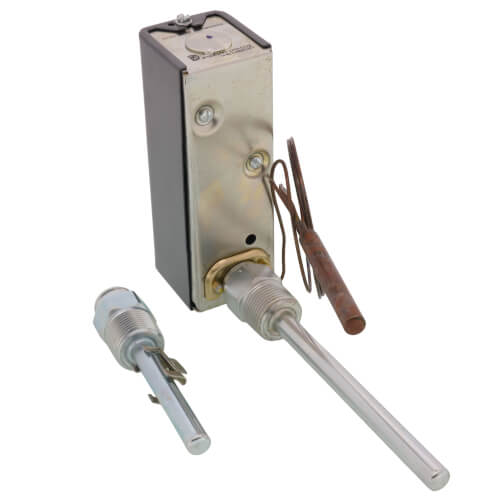

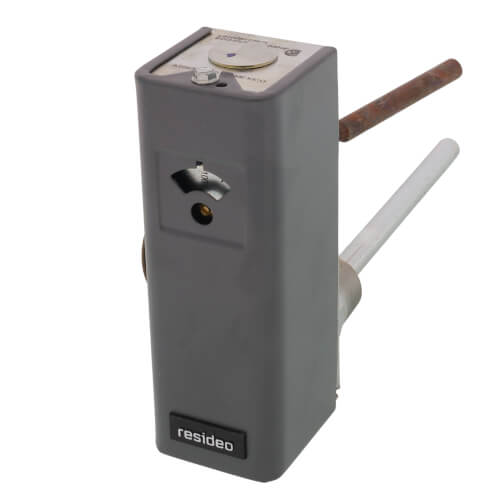

High Limit Aquastat Controller, 100-180-Degree(F) Range, 5-Degree(F) Differential
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$280.15 each
In Stock
Get 6 Mon, Apr 3
More Available
Order by 4PM, receive Monday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2A max @ 24 Vac
Fixed
Contacts Break on Temp Rise, SPST
Immersion Well
100°F to 180°F
5-5/8"
Description
–
L8100A,B, and C are immersion type controllers for regulating and limiting the tank temperature in water heaters. As the water temperature rises past the setpoint, the controller switches off the gas valve.
Specifications:
Features:
Specifications:
- Insulation Depth: 1-1/2 in.
- Bulb Size: 3/8 in.
- Capillary Length: 39 in.
- Switching Action: SPST, contacts break on temperature rise.
- Electrical Ratings (millivolt): 2A maximum at 24 Vac.
- Differential Temperature (F) Controller: 5 F, fixed.
- Energy Cutoff Switch: 20 F, fixed.
- Maximum Ambient Temperature (F) Maximum Tank: 210F
- Temperature Rating (ECO) Energy Cutoff: 200 F
- Mounting: Immersion Well
Features:
- Regulates temperature and provides energy cutoff (ECO) action on a temperature rise past the setpoint.
- Includes a second sensing element that senses average water temperature to minimize stacking.
- Fluid-filled element operates Micro Switch? SPST snap-acting switch.
- ECO switch interrupts the thermocouple circuit or main valve before tank reaches 210 F (99 C) maximum temperature.
- Includes factory-installed immersion well on controller.
- Internal adjustment screw.
- Special switch terminal provides three-wire hookup from Aquastat® controller to gas valve.
Specs
–
| Application: | High Limit |
|---|---|
| Bulb Size: | 3/8" |
| Capillary Length: | 39" |
| Switch Action: | Contacts Break on Temp Rise SPST |
| Temperature Range (F): | 100°F to 180°F |
| Electrical Rating: | 2A max @ 24 Vac |
| Max Temp Differential: | 5°F |
| Differential: | Fixed |
| Max Ambient Temp (°F): | Maximum Tank: 210 F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Mount: | Immersion Well |
| Temperature Rating: | Energy Cutoff: 200°F |
