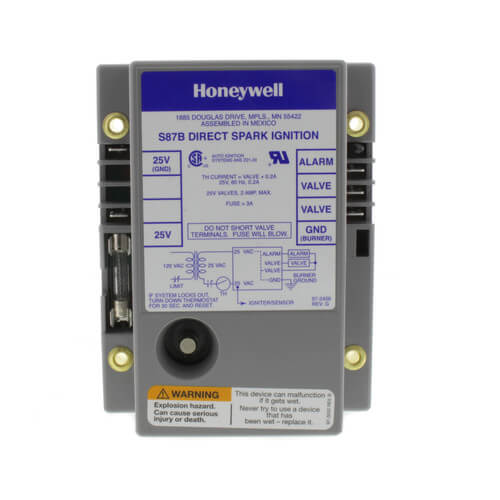

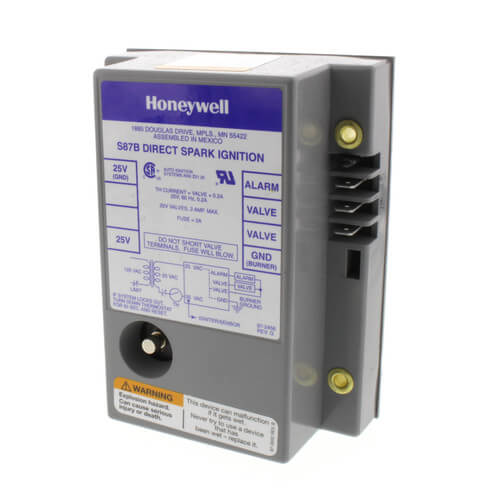

Single Rod Direct Spark Ignition Control w/ 21 Second Trial and Lockout Timing, S87B1024
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$323.49 each
In Stock
Get 11 Wed, Jul 16
Order by 6PM, receive Wednesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Direct Spark Ignition
Description
–
Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliances.
Features
Specifications
Features
- Control ignition sequence and gas control operation.
- Generate high voltage potential for main burner ignition.
- Lockout after one trial for ignition if main burner fails to ignite.
- Reset from thermostat after lockout.
- Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2.0A or less.
Specifications
- Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
- Ignition System Type: Direct Spark Ignition
- Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
- Typical Gas Control: VR8205, VR8305
- Type of Gas: Natural or LP
- Ignition Source: Internal high voltage spark generator
- Prepurge: None
- Ignition Trials To Lockout: 1
- Maximum Valve Load @ 24 Vac (Amps): 2A
- Typical Ignition Hardware: Q347A
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Max Ambient Temperature: -40 F to +175 F
- Includes: Alarm terminal
- Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
Specs
–
| Ignition Trial Time: | 21 Seconds |
|---|---|
| Lockout Timing: | 21 Seconds |
| Flame Sense: | Single Rod |
| Pre-Purge Time: | None |
| Ignition Type: | Direct Spark Ignition |
