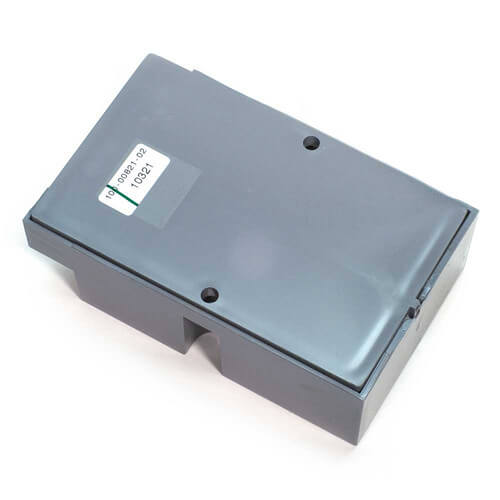

Main product image of Lockout Universal Ignition Control w/ 30 second Purge
Magnifying glass
Hover image to zoom
Home
Heating Supplies & Parts
Ignitors & Burners
Ignition Controls & Modules

Lockout Universal Ignition Control w/ 30 second Purge

Brand:
Robertshaw
SKU:
780-003
Rating:
(0)
Q&A:
(0)
Lockout Universal Ignition Control w/ 30 second Purge
Magnifying glass
Hover image to zoom
$236.64 each
Backorder
Backorder
Get it Tue, Jul 22 - Tue, Aug 19
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Ignition Type
Direct Spark Ignition

Description

–
Robertshaw's Universal Ignition Control Uni-Kits feature a flame sense circuit that will work equally well on a one rod (local sense) or a two rod (remote sense) application

Description
    The automatic recycle features assure that, in the event of flame failure, main gas is disabled and the spark repetition sequence is restarted until pilot gas is ignited. Only after pilot ignition has been re-established can main gas be returned to the burner.

    Specifications
      Input Voltage: 24 VAC to 50/60 Hz
    • Transformer: 24 VAC / 20 VA
    • Spark Rate: 3 to 4 sparks per second
    • Pilot Valve: 1 amp at .5 PF
    • Main Valve:1 amp at .5 PF
    • Combined Load: 1.5 at .4 PF
    • Flame Sense Current:.7 ?A DC @ 25°C / 24 VAC
    • Max. Total Current: 1.5 amp
    • Flame Failure Recognition Tme:.8 seconds maximum
    • Thermostat Anticipator Setting: .7 amp
    • Ambient Temperature Rating: ?40 to 175° (?40 to 80°C)
    • Relative Humidity: 95% noncondensing at 104°F

Specs

–
Ignition Type:

Direct Spark Ignition
