Description
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

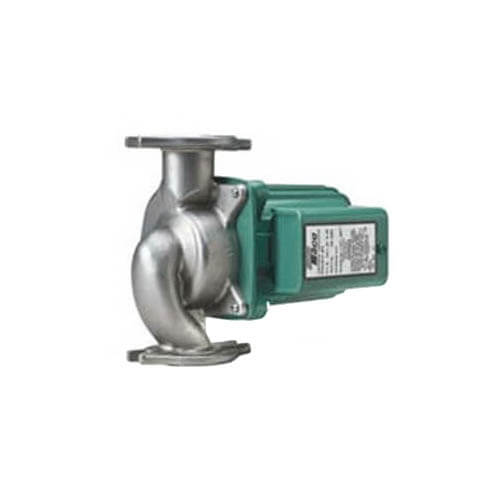

The 0013-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators on high head / high flow hydronic or radiant heating, hydro-air fan coils or heat exchangers and geothermal systems. By locating the removable, spring-loaded IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the 0013 flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit.

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-004RP
Cartridge Assembly Complete: 0013-008RP
Valve Assembly Trans/Relay: 0012-021RP

Features:
  • Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
  • Unique replaceable cartridge-field serviceable
  • Unmatched reliability-maintenance free
  • Quiet, efficient operation
  • Direct drive - Low power consumption
  • Self lubricating, No mechanical seal
  • Standard high capacity output - Compact design
  • Wide range of applications
  • Flanged connections
Hide Description
Manuals (4)
Specs
Application:

Heating

Material:

Stainless Steel

Horse Power:

1/6

Type:

Pump

Voltage:

115v

Hertz:

60

Phase:

1

Amperage:

2

RPM:

3250

Max Head (Ft):

32

Head Range (ft.):

0-32

Max Flow (GPM):

33

Flow Range (GPM):

0-33

Temperature Range (F):

40°F to 230°F

Max Pressure (PSI):

125

Connection Type:

Flanged

Connection Size:

3/4"

1-1/4"

1-1/2"

1"

Warranty:

3-Year Warranty

×
