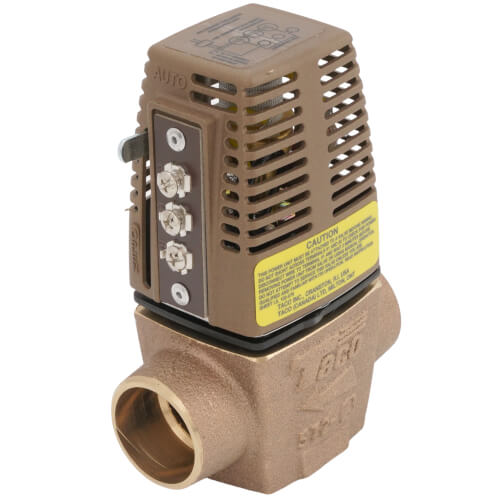

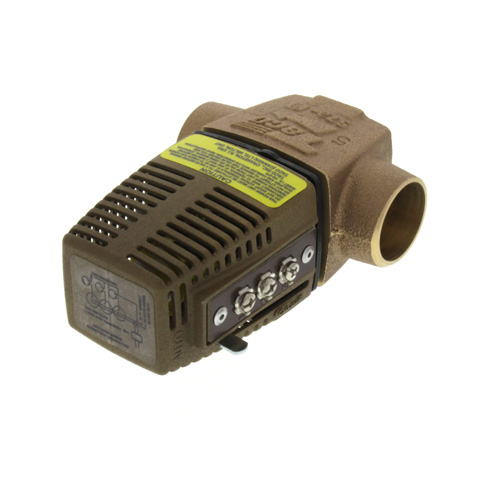

1" 572 Sweat Zone Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$176.29 each
In Stock
Get 17 Tue, Oct 3
More Available
Order by 5PM, receive Tuesday
MANUALS (5)
This item replaces: 572-2
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Sweat Connection
7 Cv
1"
24v
Normally Closed
Description
–
Taco 572 Heat Motor Zone Valve offers a convenient way to create individual zones in radiant heating or hydronic heating system. Using a single circulator pump with multiple zone valves makes it possible to start/stop the flow and divert it to achieve individual room or area comfort control and energy savings. Taco Zone Valves are the the industry standard for heating applications. The manual open lever and twist off head makes installation and service easy.
Features:
Features:
- Proven Performance – Millions in Use. Taco 572 Zone Valves are the Industry’s Top Choice for Consistent Performance.
- Rugged Dependability
- Silent Operation
- Twist Off Head
- Bellows or Globe Valve Construction Ensures Positive Shut-off and Leak Proof Operation
- Patented Construction
- Easy to Install
- Manual Open (Bypass) Lever
- 24 VAC Powered with Isolated End Switch
- 100% Factory Tested
- Made in the USA
- 3 Year Head, 5 Year Valve Body Warranty
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 7 |
| Min Flow (GPM): | 6 |
| Flow Range (GPM): | 6 to 10 GPM |
| Max Flow (GPM): | 10 |
| Width (Inches): | 3-5/8" |
| Body Pattern: | 2-Way |
| Height: | 4-13/16" |
| Connection Type: | Sweat |
| Material: | Bronze |
| Voltage: | 24v |
| End Switch: | Yes |
| Amperage: | 0.9 |
| Depth (Inches): | 2" |
| Max Pressure (PSI): | 125 |
| Wiring: | 3 Wire Terminal Block |
| Hertz: | 60 |
| Max Temp (F): | 240°F |
| Temperature Range (F): | 40°F - 240°F |
| Min Temp (F): | 40°F |
