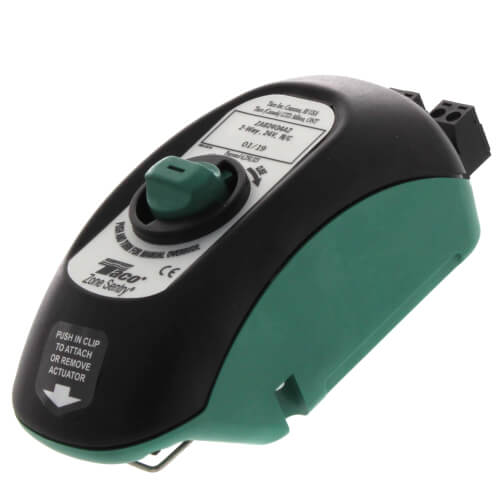

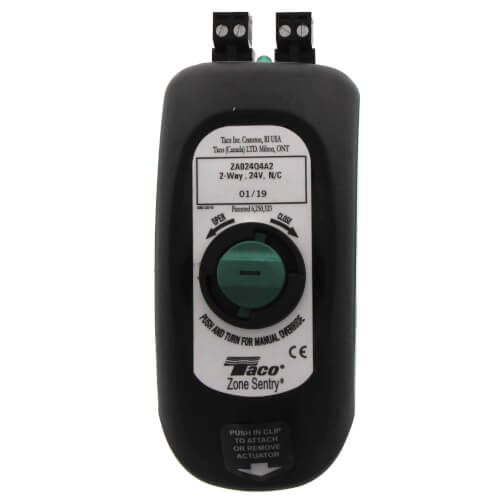

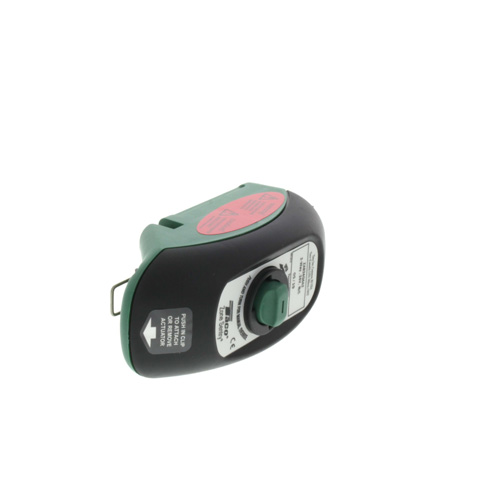

Replacement Actuator Head for Zone Sentry Valves
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$142.90 each
In Stock
Get 475 Tue, Jul 22
Order by 6PM, receive Tuesday
This item replaces: EN024Q4A1, ZA024Q4A1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Taco Zone Sentry Valves
24V
Normally Closed
Description
–
Taco Zone Sentry® Zone Valves provide on-off, normally open or normally closed control in both open and closed hydronic systems. The valves can be used in a wide variety of heating and cooling applications, primarily designed for use with baseboad, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

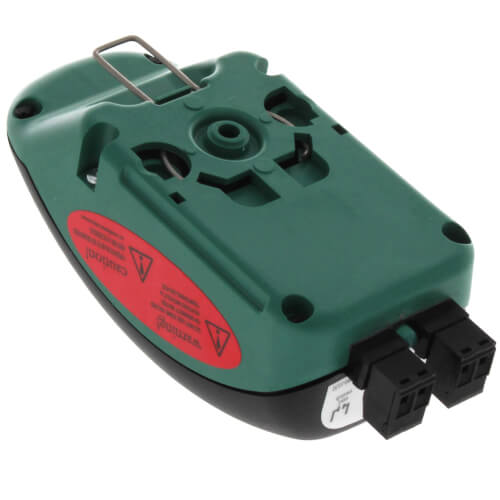

The Taco Zone Sentry® is the most technologically advanced zone valve ever made. It's also simple to install and operate. The valve can be installed in any direction, in any orientation. We then went a step further, allowing the operator to be mounted to the valve body in either direction, great for those tight baseboard jobs. Snap-in quick connects on the back of the valve make for a simple, secure and fast wiring hook-up. A green LED light shows full functionality of the valve's operation and thermostat status. Under a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90° and is also marked with a slot to indicate the position of the valve.
The Taco Zone Sentry® is the most technologically advanced zone valve ever made. It's also simple to install and operate. The valve can be installed in any direction, in any orientation. We then went a step further, allowing the operator to be mounted to the valve body in either direction, great for those tight baseboard jobs. Snap-in quick connects on the back of the valve make for a simple, secure and fast wiring hook-up. A green LED light shows full functionality of the valve's operation and thermostat status. Under a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90° and is also marked with a slot to indicate the position of the valve.
Specs
–
| Application: | Replacement Part |
|---|---|
| Used With: | Taco Zone Sentry Valves |
| Voltage: | 24V |
| Position: | Normally Closed |
Contact
+
Questions?
Customer Support has a delayed opening today for a monthly team meeting to better support you.
Call or text 888-757-4774
Special Hours
9:15am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.77 out of 57 reviews
94% would recommend this product
5 star
86%
4 star
7%
3 star
5%
2 star
2%
1 star
0%
Customer Images
Most Liked Positive Review
perfect replacement
These are an identical match for the valves that were originally installed in a boiler system in 2017. A quick way to check when you suspect one has gone bad is to swap one over from another zone of your system that you know is working (mine has 4 zones). They're easy to swap, a simple tension spring clip set up on the back for taking them on and off the valve. Just remember the order of the wires as you unscrew and put the same wires back in order on the new one. Replacing one is a less than 15 minutes job and saves hundreds in plumber fees.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good product would not need to be purchased over and over
Less than 2 years ago our furnace was replaced and zones were made to be controlled by a Taco system and their valves. Since then two (that's 50%) of the actuators needed to be replaced. One was replaced under warranty, the other I decided to do myself (tired of paying the installer hundreds of $$ for their 10-minute "repair" visits).
The new actuator that I bought from SupplyHouse works like a charm so far. I am sure that when it starts acting up again, I'll probably come to SupplyHouse again unless there will be another, less expensive option.
If you have a choice of a system, do your own research. We weren't given a choice, the installer just went with Taco, pretty much using their own judgement. Of course we can blame ourselves only for picking that installer.
