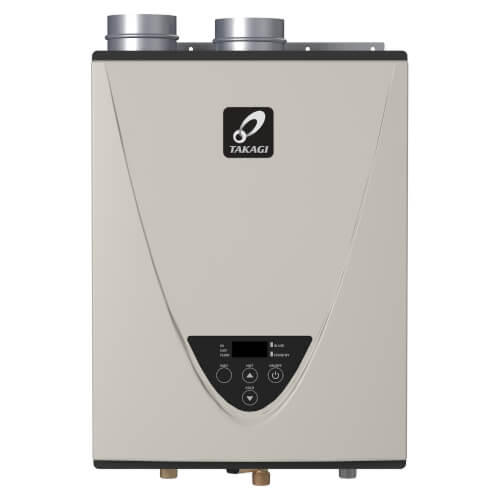

T-H3S-DV-N Indoor Tankless High Efficiency Condensing Water Heater (NG)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Rebates:
This product qualifies for a federal tax rebate of up to $600. Federal Rebate click for more info
In addition to the federal rebate, you may also be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about local rebate programs that may apply to you. Takagi Rebate Center
Note: Isolation valves are not included but are recommended for installation.
The all new T-H3S-DV/OS is available in 2 models the T-H3S-DV (Indoor) and the T-H3S-OS (Outdoor) having a max GPM is 8.0. Also offers Ultra-Low Nox condensing technology which provides 0.95 energy factor. Try the new T-H3S-DV/OS and see why Takagi offers the highest efficient and durable commercial tankless heaters on the market.
The primary heat exchanger is constructed of HRS35 Commercial-Grade copper which is more resilient against erosion. In addition to the added durability, the T-H3S-DV/OS is ENERGY STAR® qualified. Indoor model includes a built-in temperature controller and diagnostics while the outdoor model includes a temperature remote controller.
- This unit is NOT approved for installation in Manufacture Homes and is not suitable for space heating applications only.
- Ultra-Low NOx Condensing Technology Provides
- Significant Energy Cost Savings - Unprecedented 0.95 Energy Factor
- ENERGY STAR® Qualified
- Durable HRS35 Commercial-Grade Copper Primary Heat Exchanger
- Type 316L Stainless Steel Secondary Heat Exchanger
- Electronic Ignition - No Pilot Light
- Indoor Model has Built-in Temperature Controller and Diagnostics
- Outdoor Model has Temperature Controller and Diagnostics Included
- Factory-Installed Power Cord Included for Indoor Models
- Complies with Lead Free Standards
- Suitable for Commercial Application (T-H3 Models)
- Internal Freeze Protection System
- Power Direct Vent Design Provides Flexible
- Venting with PVC, CPVC or ABS
Specs
| Energy Factor: | 0.95 |
|---|---|
| Inlet Gas Pressure: | 5.0-10.5"W.C. |
| Product Type: | Tankless Heater |
| Max Flow (GPM): | 8 |
| BTU (Max): | 180000 |
| BTU (Min): | 15000 |
| Fuel Type: | Natural Gas |
| Vent Type: | Direct Vent |
| Application: | Residential 2-4 Showers |
| Installation Type: | Indoor Only |
| Venting Requirement: | PVC/CPVC |
| Energy Star Rated: | Yes |
| Height (Inches): | 22.5" |
| Width (Inches): | 17-3/4" |
| Depth (Inches): | 10-3/4" |
| Type: | Condensing |
| Flow Rate at 70F Temp Rise (GPM): | 4.8 |
| Flow Rate at 60F Temp Rise (GPM): | 5.7 |
| Flow Rate at 40F Temp Rise (GPM): | 8.0 |
| Flow Rate at 50F Temp Rise (GPM): | 6.8 |
