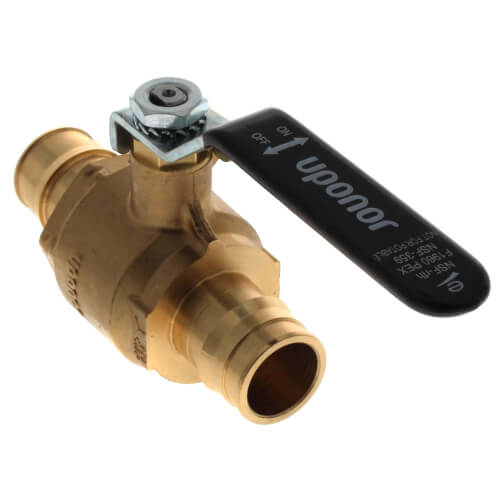

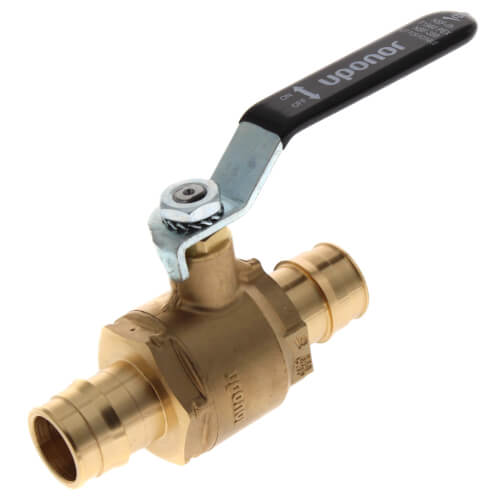

1" ProPEX Brass Ball Valve (Full Port)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
A3201010 has been discontinued
Discontinued February 11, 2023
This product was discontinued by the manufacturer.
MANUALS (3)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Direct Replacement:
1" ProPEX Full Port Brass Commercial Ball Valve, SS Ball and Stem (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
In Stock
Get 289 Mon, Apr 3
Product Highlights
–
1"
Brass
PEX
Expander (ProPEX)
ASTM F1960, CSA B137.5, ASTM F877, NSF 359, ASTM E84 Standards Met
29 Cv
Description
–
Uponor ProPEX® Brass Ball Valve is intended for radiant
heating/cooling and hydronic piping applications.1 Both ends are
manufactured with the ProPEX fitting for connections to Uponor
PEX pipe. The full-port valves are compatible with propylene glycol
mixtures up to 50%. Stem extensions can be installed to
accommodate up to 2" of pipe insulation. These ball valves are not
for use with potable-water applications.
Features:
Features:
- Conforms to standards ASTM F877, ASTM F1960, ASTM E84, CSA B137.5 and NSF 359
- Listed to ANSI/NSF 14, cNSFus-rfh and cQAIus
- Allows designers and installers to specify and install an inline, PEX-to-PEX ball valve anywhere in the system
- Blow-out proof stems
- Available with stem extensions to accommodate up to 2" of insulation for insulated-piping applications
- Features Uponor’s durable, reliable ProPEX fitting system for connections that hold tight with 1,000 pounds of radial force
Specs
–
| Application: | Plumbing Heating |
|---|---|
| Size: | 1" |
| Flow Capacity (Cv): | 29 |
| Max Pressure (PSI): | 250 |
| Max Temp (F): | 250°F |
| Material: | Brass |
| Fitting System Compatibility: | Expander (ProPEX) |
| Standards Met: | ASTM F1960 CSA B137.5 ASTM F877 NSF 359 ASTM E84 |
| Tubing Compatibility: | PEX |
| Warranty: | 10 Year |
| Port Type: | Full Port |
| Connection Type: | ProPEX x ProPEX |
| Connection Method: | PEX |
