2" Bronze RPZ (009M2QTS)

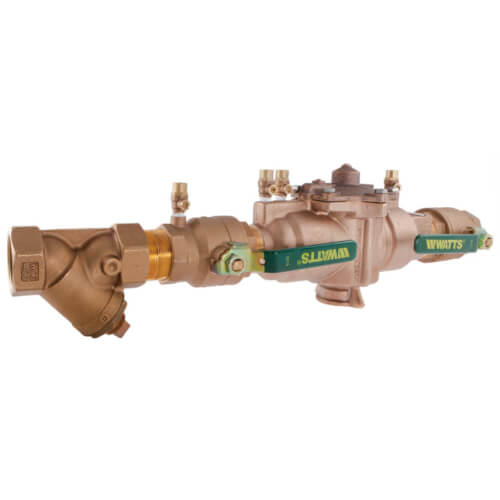

This 2 inch reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body and strainer, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Features:

• Test cocks are screwdriver slotted
• Quarter turn full port resilient seated ball valve shutoffs
• Large body passages provides a low pressure drop
• Internal relief valve for reduced installation clearances
• Single access cover and modular check construction for the ease of maintenance
• Furnished with a strainer
• Bronze body construction for durability
• Replaceable seats for an economical repair
• Captured springs for safe maintenance

Specifications:

• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature: 180F
• Maximum Working Pressure: 12.10 BAR
• Maximum Working Pressure: 175 PSI
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Outlet Connection Size: 2"
• Protection Type: Backpressure and Backsiphonage
