We no longer carry FG5X12-24
Unavailable since October 16, 2017
MANUALS (1)
This item replaces: FP5X12-24
Direct Replacement:

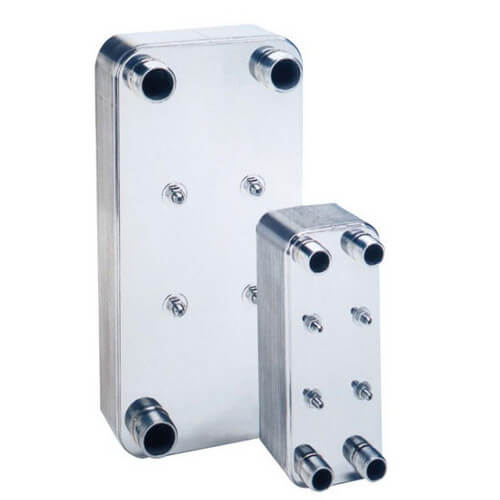

24 plate, 1" Thread, 40 GPM Heat Exchanger (5" x 12")
VIEW REPLACEMENTProduct Highlights
–
12-1/5"
2-3/5" Depth
450 MAX PSI
Male Thread Type
up to 1200 Max BTUs
350°F Max
Description
–
Designed for use in boiler applications to isolate the
boiler water from the potable hot water, these offer quicker response and smaller size.
FlatPlate® Advantages:
How to Select the Flaplate model for your application:
FlatPlate® Advantages:
- Full thickness 316L copper brazed plates for longer life and reliability.
- Quicker response on a heating call and smaller size than older technologies.
- Mounting Studs are included as standard.
How to Select the Flaplate model for your application:
- Use the brochure in the resources section to make sure your design conditions match the design conditions.
- Find the Capacity (BTUH) you need.
- Select the appropriate FlatPlate® heat exchanger.
- Check your selection to make sure that the minimum required flow rate and pressure drop are acceptable.
Specs
–
| Width: | 4-9/10" |
|---|---|
| Height: | 12-1/5" |
| Flow Rate (GPM): | 40 |
| Application: | Heating |
| Depth (Inches): | 2-3/5" |
| Max Pressure (PSI): | 450 |
| Type: | Hydronic Snow Melt Potable Water |
| Thread Type: | Male |
| Number of Plates: | 24 |
| Brazing Material: | Copper |
| BTU Output: | up to 1200 |
| Cover Plate Material: | Stainless Steel |
| Temperature Range (F): | 350°F Max |
| Thread Size: | 1" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: with the flat plate heat exchanger, how do I tell how close the approach temperatures are? they specs say " the larger models have closer approach temperatures". I am working with 120 degree water and want to heat water as close to that as possible, and have a flow of about 15 gal a min.
Asked by paul- I have an account with you 13 years ago
Add your answer
Verified Reply- PexSupply StaffFlatplate has an excellent free online service that would allow you to plug in your specifications and give more information including the approach temperature. It can be found here on their website : http://www.flatplateselect.com
