505474 has been discontinued
Discontinued January 20, 2017
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
3.77" x 2.85" x 1/25"
Description
–

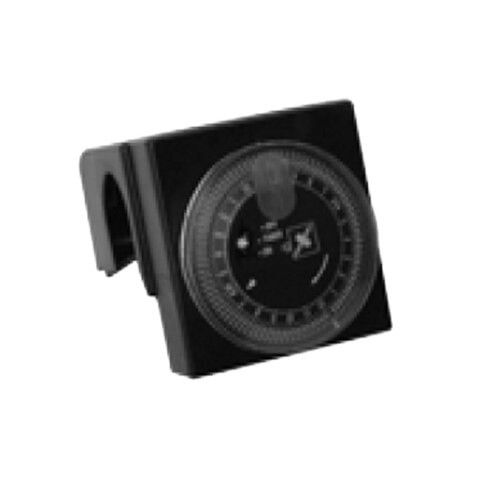

Grundfos 24 hour programmable clock timer for use with 115V single speed UP pumps
Features:
Features:
- Compact and contemporary design
- Captrive trippers are easy to set, cannot be lost
- Quartz drive provides 7-day carry-over
- Synchronous drive for greatest accuracy, lowest cost
- UL recognized, CSA-listed
- Wiring connection - 1/4" quick-connects
- Installation: Indoor, wired and mounted on the UP terminal box
Specs
–
| Type: | 24 hr. 3-position on/timer/off 15-minute intervals |
|---|---|
| Supply Voltage: | 120 VAC |
| Power Consumption: | 1 VA |
| Switch Rating: | SPDT |
| Resistive: | 21A |
| Tungsten: | 1350 W |
| Inductive: | 1 HP @ 120 VAC |
| Wiring: | 1/4" Quick Connects |
| Size: | 3.77" x 2.85" x 1/25" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Simple to install and operate
easy to install and operate. make sure it is for the pump you have.
slbru
chicago
12 years ago
Verified Buyer
Was this review helpful to you?
PEX saved the day!!!
I had installed the Grundfos recirculating pump on our new home about six years ago. The original timer failed and a replacement was not available from the source of my unit.
After reviewing available timers on line I found what I needed on the PEX website at a very competitive price.
Pex delivered my unit on time and without any apparent shipping damage.
Installation was also very easy and once again I have hot water on cold mornings for my shower.
Richard
Fairview, TX
14 years ago
Verified Buyer
Was this review helpful to you?
Very Easy to Setup and Use.
It took approximately 5 minutes to wire and attach to the pump and a minute or two to program. Very straight forward instructions and wiring diagram.
Texstrat
Boise, Idaho
15 years ago
Verified Buyer
Was this review helpful to you?
Kept its promise
Arrived in the time promised...
Easy to install..
and works as was promised....
what more could you want?
Rick
Santa Fe, NM
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: The timer, do the setting keys(all around the dial) go up or down for time on and time off? Example, to set the time you want the water to be hot, from 6:00am to 10:00am, do the keys from 6: to 10: go up or down? Thanking you in advance. Walt
Asked by Walt 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe timer has a 3 position switch: On for the pump to run continuously, OFF for the pump to stop and TIMER for the timer to control the pump. Tags on the outer edge of the timer turn the pump on and tags toward the inner turn the pump off.
Was this review helpful to you?
Q: How can I get a missing instruction book
Asked by Rey 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyou can contact Grundfos, they do not include instructions w replacement parts.
Was this review helpful to you?
Q: What is the difference between this timer and the 599388 model?
Asked by Dave 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis timer works with older UP Series 115 volt circualtors (with date codes between 9132 and 0527). Part 599388 works with current 115 volt UP Series models. These circulators will have date codes of 0528 and after.
