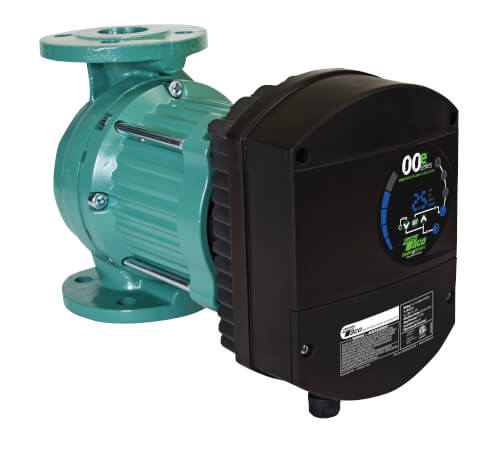

Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VR25-2 has been discontinued
Discontinued March 28, 2018
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (4)
Direct Replacement:
Viridian High Efficiency Circulator w/ 2-1/2" Flange (0.054 to 1.496 HP, 200-240V)
VIEW REPLACEMENTProduct Highlights
–
240v, 200v
1 Year Warranty
Flanged x Flanged Connection
175 MAX PSI
2-1/2" Connection
Cast Iron
Description
–
The Taco Viridian is a web-enabled, high efficiency, wet rotor, variable speed commercial
pump product line for chilled and hot water applications. All settings and pump access can
be done over an internet connection making installation, setup and service easy. The ECM
motor saves up to 80% of the electrical energy compared with conventional pumps and its
multiple operating modes fit most applications.
Specifications:
Specifications:
- Max. Operating Pressure: 175 PSI (12 bar)
- Water Temperature Range: 14F - 230F (-10 - 104C)
- Ambient Operation Temperature Range: 32F - 104F (0- 40C)
- Designed for closed loop heating and cooling systems pumping water or a water/glycol mixture
Specs
–
| Application: | Commercial |
|---|---|
| Type: | Pump |
| Connection Size: | 2-1/2" |
| Material: | Cast Iron |
| Amperage: | 4.8 |
| Voltage: | 240v 200v |
| Max Pressure (PSI): | 175 |
| Connection Type: | Flanged x Flanged |
| Flow Range (GPM): | 0-315 |
| Phase: | 1 |
| RPM: | 3000 |
| Temperature Range (F): | 14°F - 230°F |
| Speeds: | Variable |
| Warranty: | 1 Year |
