Touch Panel Interface (TPI)

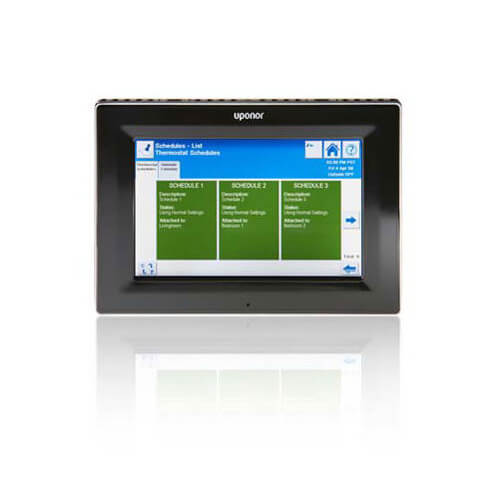

The Touch Panel Interface is a 5" x 7" high definition touch screen that can be integrated into any Climate Control Network System. The screens provide the end user simple access to all the functions setting through a simple-to-use, high quality graphical program at one location. Items such as: viewing rooms, changing room temperatures, changing modes, setting schedules along with domestic hot water, snow melt functionality and much more. Multiple TPIs can be installed in a single system.

Specifications:

• Power: Dedicated 24 VAC (+/-10%) terminal block
• Control: Used for monitor of system temperatures and setpoints. Allows daily and calendar scheduling.
• Ambient Conditions: 32°F to 105°F (0°C to 41°C) 10% to 90% humidity (no condensing)
• Connections: Cat5e patch cable with RJ45 connectors Screw-terminal block
