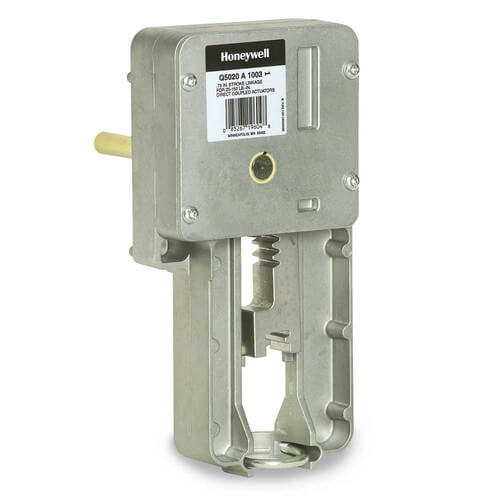

Globe Valve Linkage w/ 1" shaft

The Q5020 Globe Valve Linkages connect a Honeywell direct coupled actuator (DCA) to a steam or water globe valve. The Q5020 Linkages are compatible with two-way and three-way globe valves up to 3 inch (DN80).

Features

• Used with two-way and three-way globe valves in modulating or two-position service.
• Used with 25, 50, and 142 lb-in. spring return and 35, 70, 150, and 300 lb-in. non-spring return DCA.
• Quick and simple installation with no disassembly required.
• Heavy-duty Steel rack and pinion construction and Aluminum Die-cast housing.
• Maintenance-free construction.
• Precision roller-bearing rack construction prevents premature valve packing wear and leakage.
• Flexible actuator mounting orientation.
• Adjustable manual override lever and valve position indicator.
• Can be mounted on specific non-Honeywell valves using a 32004629 Bonnet Adapter Kit.

Specifications

• Mounting: Linkage mounts directly to the valve bonnet; actuator mounts on linkage
• Used with Actuator: Direct Coupled Actuator
• Used with:V5011N, V5013N, V5011F, V5011G
