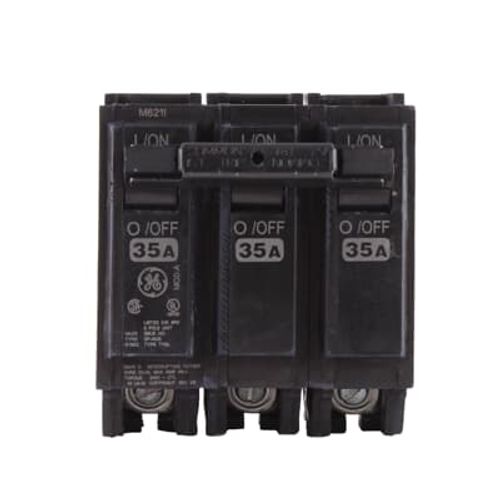

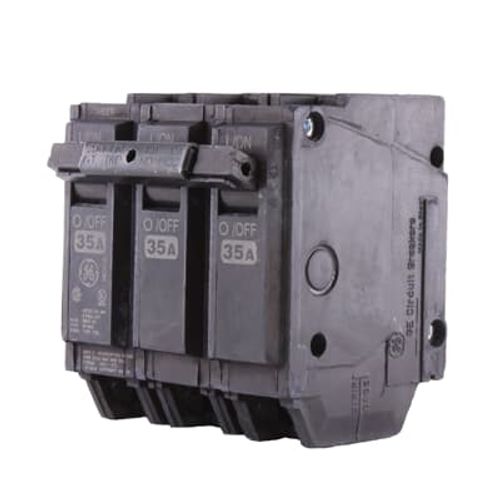

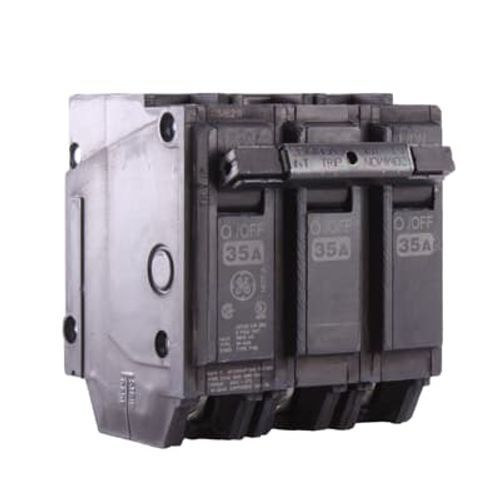

Q-Line THQL Series 3 Pole Plug-In Circuit Breaker (240V, 35A)

Product Overview:

Q Line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications in load centers or lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. The THQL32035 breaker features 3 poles, an ampere rating of 35 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

Features:

• Product Line: Q-Line (Plug-In)
• Interrupting Capacity Rating: 10 kAIC
• Voltage: 240 V
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 35 A
• System Voltage: 120 Vac; 120/240 Vac; 240 Vac
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• GSA Compliance: No
