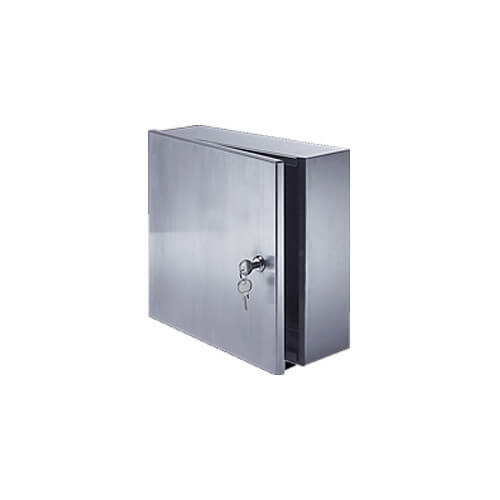

The Acudor ASVB is a surface mounted valve box designed to provide easy, convenient access to all types of valves and controls that extend outside of the finished wall, but need to be protected by a fully enclosed box. The depth of the valve box can be modified to meet all valve and control requirements. When required, vision panels, louvers and engraved plates can be supplied along with special holes for pipes or conduits.
- Box Material: Stainless Steel or Steel: 16 gauge door & box
- Box Door: Overlaps box, providing for a tight secure fit
- Box: Fully enclosed, completely attached to frame. When required,
box can be made with open back.
- Box Hinge: Continuous, exposed piano hinge

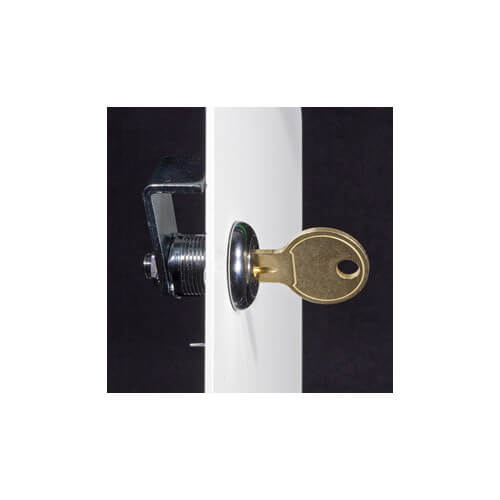

- Box Latch: Cylinder lock & key. Also available: screwdriver operated cam
latch, allen head cam latch, spanner head cam latch, flush
paddle handle, thumb turn latch
- Box Finish: Stainless Steel: #4 satin polish. Steel: 5 stage iron phosphate
preparation with prime coat of White alkyd baked-on enamel
