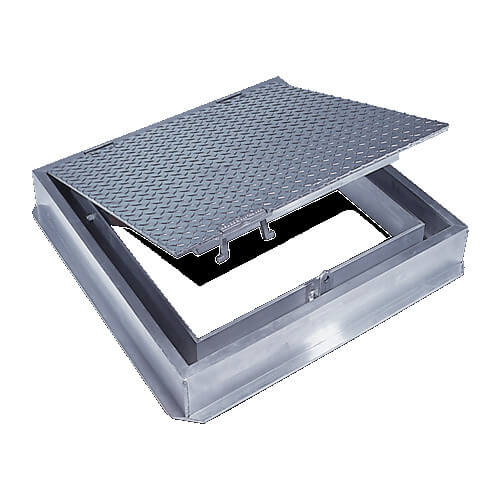

30" x 30" (Frame Opening) FC-300 Channel Frame Floor Doors

Note: Size listed is nominal door size. For detailed size dimensions see submittal sheet.

The Acudor FC Series aluminum floor doors are designed for interior and exterior applications where watertightness is required. The channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.

Features:

Channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete

Diamond plate door panel is equipped with a lush aluminum drop handle and an automatic hold open arm.

Specifications:

Material:  Aluminum door and frame; stainless steel hinges and hardware

Door: 1/4" aluminum diamond plate reinforced for live load of 300 pounds/sq. ft.

Frame: Angle frame fabricated from aluminum extrusion with an integral 1" anchor flange

Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts

Opening Device: Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance.

Standard Latch: Flush aluminum drop handle with staple for padlock. Also available: Recessed padlock provision: st/stl Slamlock

Finish:  Mill finish, with optional bituminous coating on exterior of frame
