Note: Size listed is nominal door size. For detailed size dimensions see submittal sheet.Recessed 1/8" to accommodate carpeting and vinyl tile.
To keep the loor material from cracking or chipping within the door panel, the securing screws are located in the flange of the mounting frame.

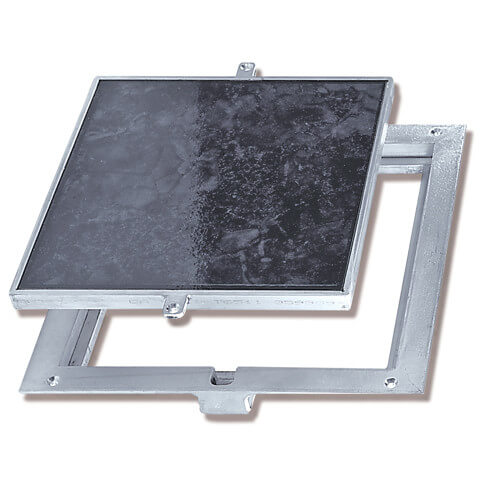

The Acudor FT-8080 aluminum floor access door is designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material. To keep the floor material from cracking or chipping within the door panel, the securing screws are located in the flange of the mounting frame.
Door: 1/4" smooth aluminum plate reinforced for live load
of 150 pounds/sq. ft., recessed 1" for carpet//vinyl tile
Frame: 1-1/2" x 1-1/4" aluminum angle with mounting holes in top lange
Standard Latch: Door panel is secured to frame with 1/4" x 1" flat head screws
Finish: Mill finish
