Description

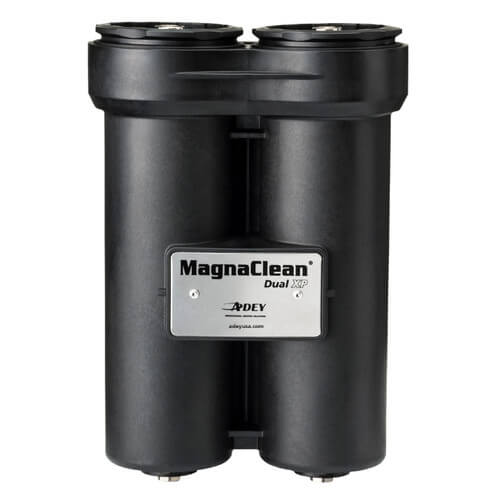

Double Protection – for large residential and light commercial systems
Specifications:
Canister and Lid
Magnets x 2
Bleed Valves x 2
Drain ports x 2
Telescopic connectors x 2
- Ideal for small to medium-size commercial properties (churches, offices, small retail locations)
- Dual-magnetic chambers – double the performance
- Four non-magnetic capture zones with improved capture
- Unique, 1 ½" NPT telescopic connectors
- Integral flow-diverters ensure 360° distribution for uniform flow around magnets, maximizing iron oxide sludge capture
- Powerful permanent magnet
- Captures non-magnetic debris
- Rotating filter connections allow customizable installation options
- Two low-profile drain valves and built-in air vents for easier maintenance
- Bi-directional flow – either port can be designated as entry port
- Easy dosing of ADEY® treatment formulas via canister
- Full-flow valves for minimal pressure drop
Specifications:
Canister and Lid
- Material: Glass reinforced nylon
- Volume: 0.64 gallons (when telescopic connectors are retracted)
- Thread: Pressure thread
- Flow configuration: Bi-directional – any port can be inlet
- Main lid seal: EPDM
Magnets x 2
- Housing: Stainless steel
- Length: 855/64"
- Diameter: 3/4"
Bleed Valves x 2
- Body material: Nickel plated brass
- Screw: Nickel plated brass
- Thread interface: Metric M6
- Seals: EPDM
Drain ports x 2
- Drain plug material: Nickel plated brass
- Drain plug thread: Metric M8
- Seals: EPDM
Telescopic connectors x 2
- Inlet: 1-1/2" Nominal bore
- Outlet: 1-1/2" Nominal bore
- Body material: Nickel plated brass
- Connection: 1-1/2" NPT female
- O ring material: EPDM
