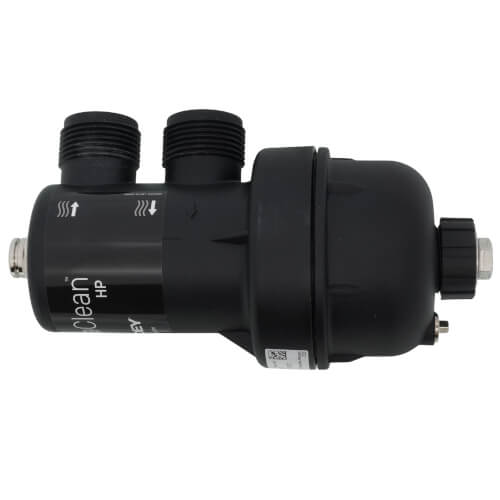

MagnaClean HP Low Temp System Mag Filter

MagnaClean HP is designed specifically for low temperature systems such as heat pump, radiant and snow-melt systems. With magnetic and dedicated non-magnetic capture, MagnaClean HP helps to keep the system working to optimum efficiency.

Features

• Designed specifically for low temperature systems such as heat pump, radiant and snow-melt heating systems
• Powerful magnetic capture, dedicated non-magnetic capture
• Built-in isolation valves
• Non-blocking design - continuous flow even when the filter is full
• Unique Cycloflow™ technology diverts water for maximum capture
• Acts as a dosing pot
• Rotating valves allow multiple installation options
• EPDM seals - compatible with inhibitors and glycols
• 10 year warranty

Specifications

• Internal water operating temperature: 3°C to 95°C / 37F - 203F
• Maximum working pressure: 6 bar / 87 PSI
• Maximum flow rate: 21 GPM
  Canister and Lid
• Material: Glass reinforced nylon
• Fluid capacity: 930 ml / 31.4 oz
• Thread: Pressure thread
• Flow configuration: Directional inlet on bottom port
• Main lid seal: EPDM
• Valve to canister: EPDM
  Magnet
• Housing: Stainless steel
• Length: 6"
• Diameter: ¾"
  Bleed valve
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Thread interface: M6
• Seals: EPDM
  Drain port
• Drain plug material: Nickel plated brass
• Drain plug thread: M8
• Seals: EPDM
  Valves
• Body material: Nickel plated brass
• Seals material: Long life PTFE ball seals
• O ring material: EPDM
• Valve inlet/outlet: 1" US copper pipe compression
• Fittings: Adapter 1" FTG x 1¼" NPT
  Servicing Clearance
• Air vent (top): 2"
• Drain Plug (bottom): 2" If left in situ
• Mesh housing (bottom): 6"
  Packaging and handling
• Packaged in single units with all components included
  Storage
• No special storage requirements necessary
