Description

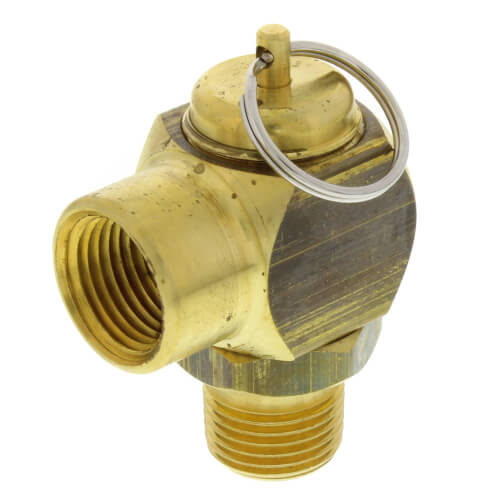

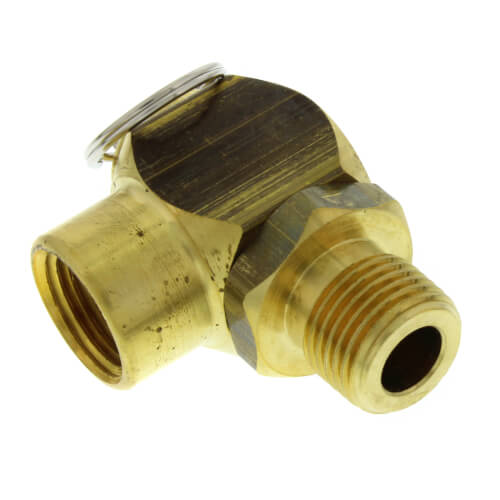

ASME Section VIII capacity certified safety valve for overpressure protection of steam systems, cookers, kettles, sterilizers and similar equipment.

FEATURES:
  • ASME Section VIII Certified Capacity
  • 15-60 psig (1.0 – 4.1 bar) Set Pressures @ 300°F (150°C) max
  • Compact Design
  • Chrome Finish Options
  • Stainless Steel Wetted Component Option
  • Directive 97/23/EC (PED) Compliant Option
  • Directive 2002/95/CE (RoHS) Compliant
  • Made in USA
Hide Description
Manuals (2)
Specs
Size:

1/2"

Outlet Type:

FNPT

Connection Type:

MPT x FPT

Inlet Type:

MNPT

Pressure Set Point:

50 psi

Max. Capacity lbs/hr:

339

Max Temp (F):

300°F

Finish:

Brass

×
