1" MNPT x 1" FNPT RVS13 643 LBS/HR Low Pressure Steam Safety Valve (8 psi)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$117.90 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1" x 1"
MNPT
FNPT
8 psi
250°F Max Temp
MPT x FPT Connection
Description
–

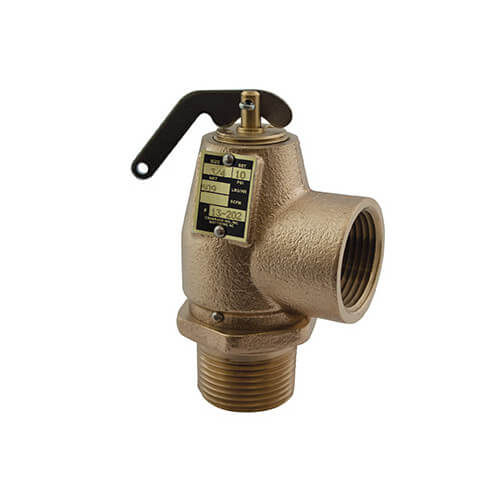

The Apollo® 13 Series bronze low pressure steam
safety valve is designed to meet ASME Section IV code
requirements for protection of steam heating boilers,
systems and similar equipment.
Features:
**Image may not be exact representation of item.**
Features:
- Flat seat, PTFE faced disc for positive seal
- Standard set pressure of 15 psig; capacities apply to valves set @15 psig
- Positive drainage of condensate from seat area
- Registered in all Canadian provinces and territories, CRN #0G8547.5C
- National Board certified at 15 psig
**Image may not be exact representation of item.**
Specs
–
| Size: | 1" x 1" |
|---|---|
| Pressure Set Point: | 8 psi |
| Max. Capacity lbs/hr: | 643 |
| Max Temp (F): | 250°F |
| Connection Type: | MPT x FPT |
| Outlet Type: | FNPT |
| Inlet Type: | MNPT |
| Material: | Bronze |
