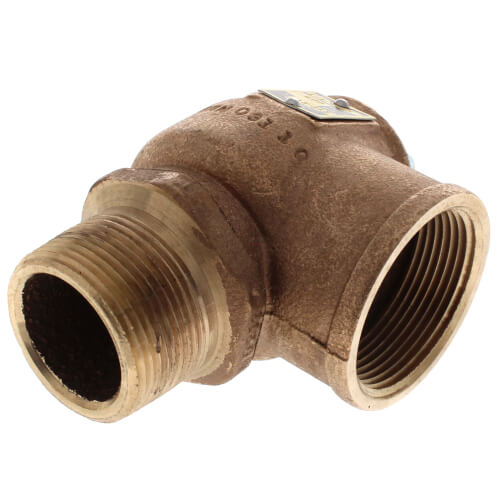

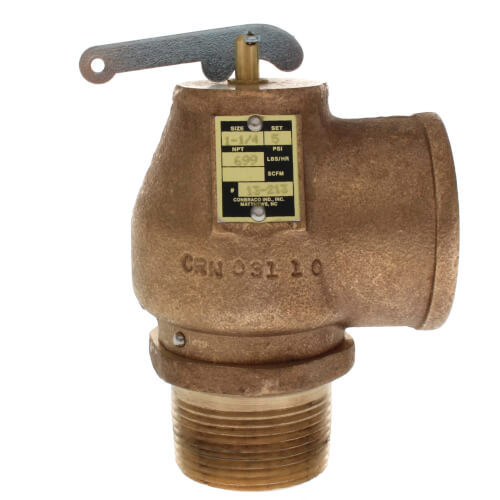

Main product image of 1-1/4" MNPT x 1-1/2" FNPT RVS13 1200 LBS/HR Low Press Steam Safety Relief Valve (5 psi)
Magnifying glass
Hover image to zoom

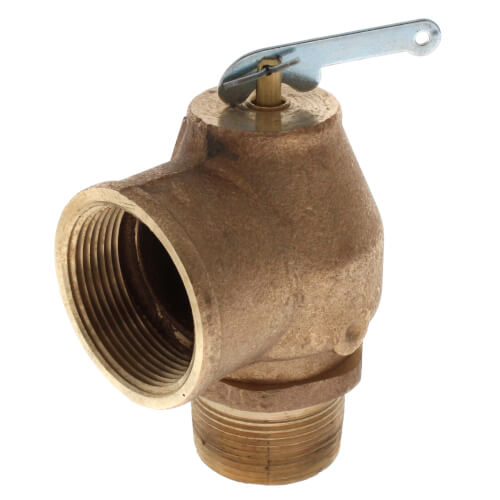

1-1/4" MNPT x 1-1/2" FNPT RVS13 1200 LBS/HR Low Press Steam Safety Relief Valve (5 psi)

Brand:
Apollo Valves
SKU:
13213B05
Rating:
(0)
Q&A:
(0)
1-1/4" MNPT x 1-1/2" FNPT RVS13 1200 LBS/HR Low Press Steam Safety Relief Valve (5 psi)
Magnifying glass
Hover image to zoom
$205.97 each
In Stock
In Stock
Get 6 Tue, Jul 21
Order by today, receive Tuesday

MANUALS (3)

Product Overview
Specification Sheet
User Guide
Product Overview
Specification Sheet
User Guide
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1-1/4" x 1-1/2"
Product Highlight: Inlet Type
MNPT
Product Highlight: Outlet Type
FNPT
Product Highlight: Pressure Set Point
5
Product Highlight: Max Temp (F)
250°F Max Temp
Product Highlight: Connection Type
MPT x FPT Connection

Description

–
The Apollo® 13 Series bronze low pressure steam safety valve is designed to meet ASME Section IV code requirements for protection of steam heating boilers, systems and similar equipment.

Features:
  • Flat seat, PTFE faced disc for positive seal
  • Standard set pressure of 15 psig; capacities apply to valves set @15 psig
  • Positive drainage of condensate from seat area
  • Registered in all Canadian provinces and territories, CRN #0G8547.5C
  • National Board certified at 15 psig

Specs

–
Size:

1-1/4" x 1-1/2"

Pressure Set Point:

5

Max. Capacity lbs/hr:

1200

Max Temp (F):

250°F

Outlet Type:

FNPT

Connection Type:

MPT x FPT

Inlet Type:

MNPT

Material:

Bronze
