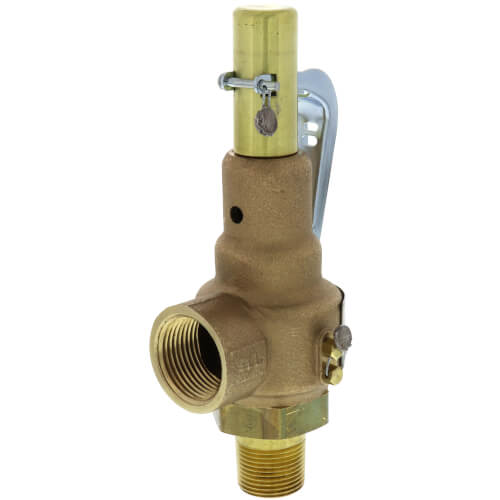

19 Series 3/4" MNPT x 1" FNPT 2,160 LBS/HR Safety Relief Valve (200 psi)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$352.70 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4" x 1"
MNPT
FNPT
200 psi
Bronze
MPT x FPT Connection
Description
–
BRONZE SAFETY VALVES FOR STEAM, AIR & GAS SERVICE
National Board capacity certified, high capacity, ideal for use with steam boilers, sterilizers, pressure vessels, compressors, and pressure piping systems.
Product Features
National Board capacity certified, high capacity, ideal for use with steam boilers, sterilizers, pressure vessels, compressors, and pressure piping systems.
Product Features
- Wider wrenching hex for easier, faster installations
- European Pressure Equipment Directive Compliant (optional)
- Max. temp. 406°F, 422°F with stainless steel trim
- 12 sizes, 1/2" thru 2-1/2" NPT
- Stainless steel spring
- Optional 316 stainless steel wetted trim (Specify 19L or 19S Series)
- Available in metal and soft seat designs
- Metal to metal seat lapped to optical flatness
- Less costly repairing, soft seat easily replaced
- Double ring, full bore, high-capacity design
- Registered in all Canadian provinces and territories CRN #0G8547.5C
Specs
–
| Size: | 3/4" x 1" |
|---|---|
| Pressure Set Point: | 200 psi |
| Max. Capacity lbs/hr: | 2160 |
| Material: | Bronze |
| Outlet Type: | FNPT |
| Inlet Type: | MNPT |
| Connection Type: | MPT x FPT |
