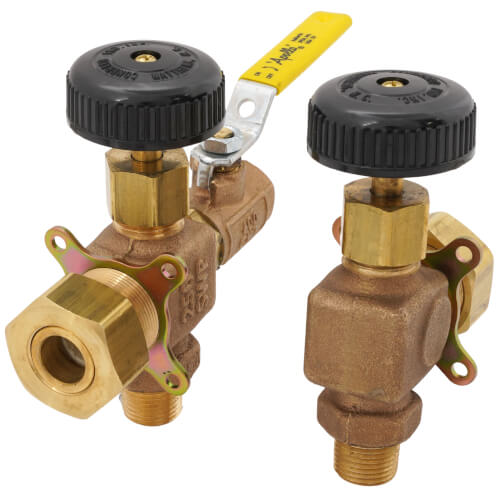

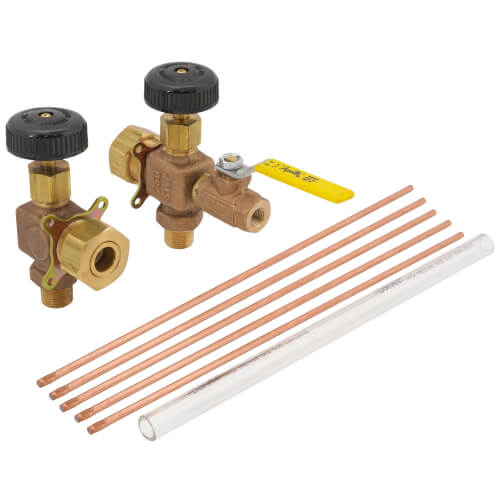

1/2" Bronze Liquid Level Gauge w/ 12" Glass & Rod (Composition Wheel)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$513.45 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5/8" x 12"
Bronze, Glass
12" Length
Description
–
Automatic and non-automatic direct reading gauges in shank pipe sizes 1/2" and 3/4"
Features:
**Image is not exact representation of item.**
Features:
- Heavy pattern bronze valve body
- Guard rod bracket to accommodate four guard rods
- PTFE reinforced gauge glass gasket and stem packing are standard
- Rated 250 psig @ 400°F, 500 psig @ 100°F
- Automatic - conforms to ASME power boiler code requirements for automatic water gauges; ball checks in upper and lower arms
- High pressure gauge glass and gaskets are standard
- CRN Registered
- Bronze ball valve drains are standard
- Glass OD: 5/8"
- Glass Length: 12"
**Image is not exact representation of item.**
Specs
–
| Type: | Gauge Glass |
|---|---|
| Size: | 5/8" x 12" |
| Material: | Bronze Glass |
| Pipe Size: | 1/2" |
| Length (Inches): | 12" |
