Description

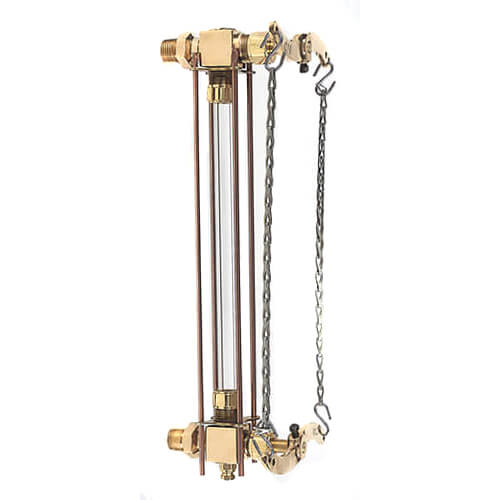

Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter-turns.

Features:
  • Quick opening, non-automatic
  • Service rating: 250 psig @ 400°F, 500 psig @ 100°F (See note!)
  • EPDM standard gauge glass gasket
  • Standard 1/4" needle drain valve
  • Furnished with 12 feet of chain
  • H-2485 pull handle is standard
  • CRN Registered
  • Glass OD: 5/8"
  • Glass Length: 12"


**Image is not exact representation of item.**
Hide Description
Manuals (2)
Specs
Type:

Gauge Glass

Size:

5/8" x 12"

Material:

Glass

Pipe Size:

1/2"

Finish:

Polished

Length (Inches):

12"

×
