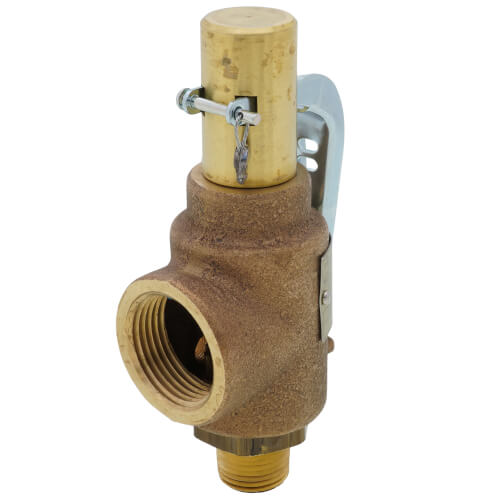

29 Series 1/2" MNPT x 1" FNPT 423 LBS/HR Safety Relief Valve, ASME VIII Steam (100 psi)

Conbraco 29 Series is ideally suited for OEM applications where compact size, dependable performance and maximum economy are required. These rugged safety valves feature a top guided design and patented Teflon “soft-seat” for dramatically reduced seat leakage. Flow ratings are National Board certified.

FEATURES:

• New, more descriptive model numbering system
• Stainless steel springs are standard
• PFA Teflon seat resists corrosive boiler chemicals
• Rust-proofed steel stem and spring washers
• Lower control ring ensures short, consistent blowdown
• Tapped body drain allows piping of condensate away from equipment
• Reduced repair costs; soft seat easily replaced

Specifications:

• Size: 1/2" M x 1" F
• Installation Height: 5"
• Body Material: ASTM B584 Bronze
• Nozzle Material: ASTM B16 Brass
• Spring Material: Stainless Steel
• Seat Material: PFA Teflon
• Service: ASEM Section VIII Steam Capacity: 423 LBS per HR
