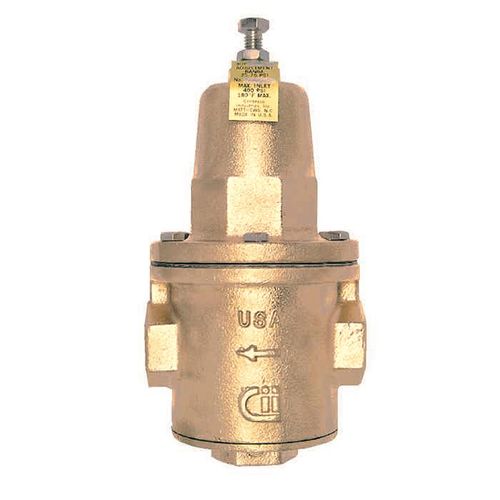

3/4" PRH High Capacity Pressure Reducing Valve
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$360.34 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
75 MAX PSI
25 PSI
FNPT
FNPT
3/4"
Description
–
The Apollo® PRH (36H Series) Pressure Reducing Valves are designed for commercial, industrial,
and institutional applications to reduce incoming water pressure for protection of plumbing
system components and to reduce water consumption. The valves are made with proven
ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low
pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion
downstream. The bottom access enables easy in-line cleaning or seat replacement.
Features:
Performance Rating:
Features:
- Sealed Spring Cage for Vault Installation
- Ultra-high Flow Capacity
- Internal Thermal Expansion By-pass
- Local Code Approvals
- Standard Factory Setting: 50 psi
- Three spring ranges cover 10 ? 165 psi
- Stainless Steel Bolts and Spring
- 150 lb ANSI B16.24 Flange Connection Option
- In-line strainer option
- 100% MADE IN THE USA
Performance Rating:
- Maximum Operating Pressure: up to 400 psig
- Temperature Range: 33°F ? 180°F
Specs
–
| Application: | Plumbing |
|---|---|
| Size: | 3/4" |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 75 |
| Pressure Range: | 25 to 75 psi |
| Inlet Type: | FNPT |
| Material: | Bronze |
| Temperature Range (F): | 33°F to 180°F |
| Outlet Type: | FNPT |
