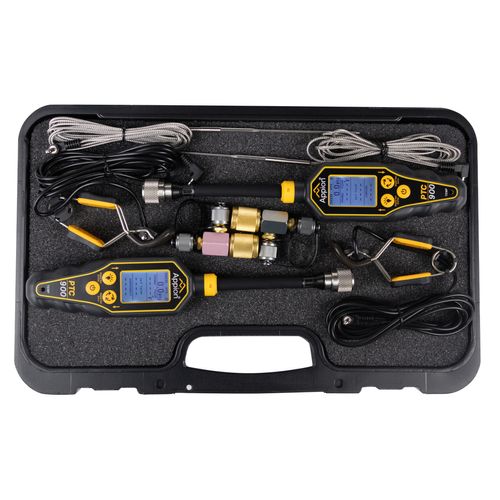

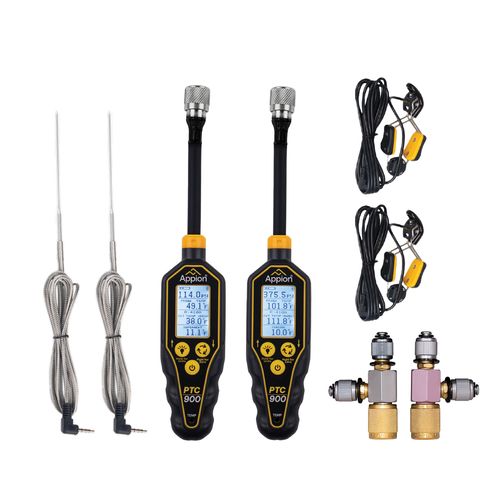

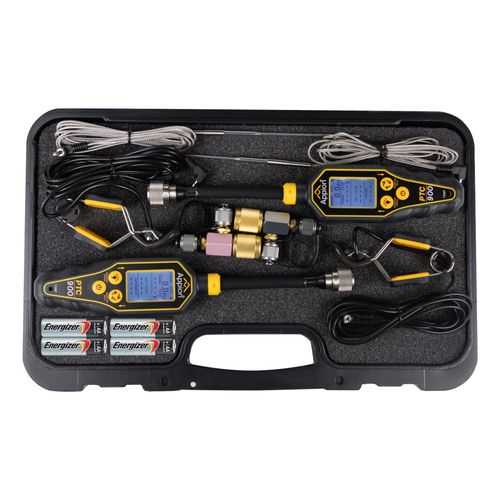

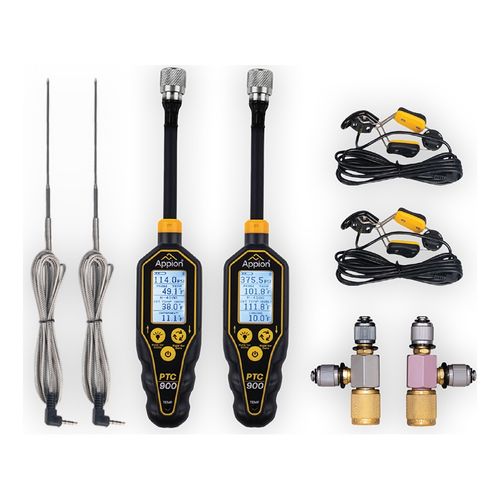

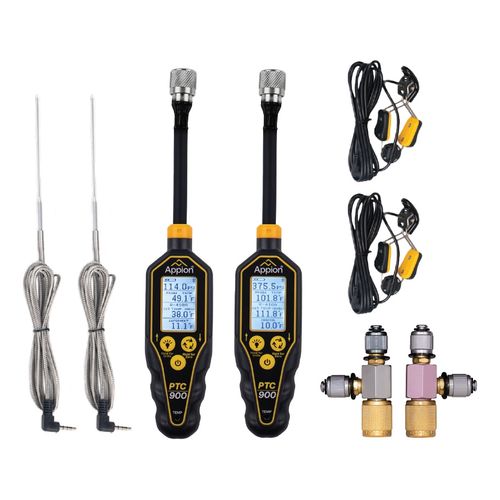

Digital Pressure & Temperature Compound Gauge Kit

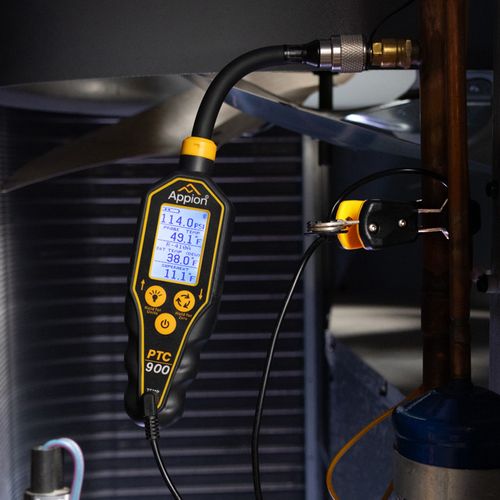

Use the MegaSeal Low-Loss Charging-T to help meter refrigerant during the charging process. The side port allows for easy connection of a Digital Pressure/Temperature Gauge to monitor system pressures during the whole process.

Specifications:

• Weight: 5.32 oz. (151 g) *without batteries
• Gauge Body Dimensions: 0.43 x 1.91 in. (265 x 48.25 x 25.4 mm)
• Flexible Probe Dimensions: Length: 4.3 in (110 mm) Diameter: 0.38 in. (9.75mm)
• Pressure Probe Connection: 1/4 in. Female Flare
• Water Resistance: IP55

Guage Specifications:

• Gauge Weight: 5.32 oz. (151 g) *without batteries
• Gauge Body Dimensions: 0.43 x 1.9 x 1 in. (265 x 48.25 x 25.4 mm)
• Flexible Probe Dimensions:
• Length: 4.3 in. (110 mm)
• Diameter: 0.38 in. (9.75 mm)
• Pressure Probe Connection: 1/4 in. Female Flare
• Water Resistance: IP55 *with temperature probe or clamp connected
• Units: Pressure: psi and in/Hg, kg/cm2 and cm/Hg, bar, kPa, MPa Temperature: Fahrenheit (F), Celsius (C)
• Gauge Operating Temperature: -4 F to 131 F (-20 C to 55 C) *limited by battery performance
• Storage Temperature: -4 F to 140 F (-20 C to 60 C) *without batteries
• Battery Type: 2 x AA
• Battery Life:
• Bluetooth On: 175 hours at 77 F (25 C)
• Bluetooth Off: 220 hours at 77 F (25 C)
• Wireless Range: 1000 ft. (300 m) *line of sight
• Auto Power Off Time: 15 Minutes (Selectable On/Off)
• Sensor Operating Range: Pressure: -28 in/Hg to 900 psi
• Resolution:
•  Pressure: .5 psi, .4 in/Hg, .03 kg/cm2, .1 cm/Hg, .034 bar, 3 kPa, .003 MPa
• Temperature: 0.1 F, 0.1 C
• Pressure Accuracy: Pressure:  .06% of Full Scale
• Display Overload: 900.1 psi
• Sensor Overload: 1450.4 psi

Temperature Probe Specifications:

• Weight: 1.05 oz. (30 g)
• Temperature Probe Dimensions:
• Probe Size: 3.54 in. x .086 in. (90 x 2.0 mm)
• Cable Length: 6 ft. (1.82 m)
• Water Resistance: IP67 *probe only
• Probe Operating Temperature: -4 F to 131 F (-20 C to 55 C)
• Storage Temperature: -4 F to 140 F (-20 C to 60 C)
• Sensor Saturation Time: 8 Seconds *varying conditions may delay saturation time
• Sensor Operating Range: -40 F to 221 F (-40 C to 105 C)
• Temperature Accuracy:
• .45 F at 77 F / .25 C at 25 C
• 1.8 F (-40 F to 221 F) / 1 C (-40 C to 105 C)

Temperature Clamp Specifications:

• Weight: 2.32 oz. (66 g)
• Temperature Probe Dimensions:
• Clamp Size: 4.17 x .98 x 1.81 in. (106 x 25 x 46 mm)
• Probe Size: .86 x .78 x .39 in. (22 x 20 x 10 mm)
• Pipe Size Compatibility: 1/8 in. to 1  in. (3.175 to 41.275 mm)
• Cable Length: 6 ft. (1.82 m)
• Water Resistance: IP67 *clamp only
• Probe Operating Temperature: -4 F to 131 F (-20 C to 55 C)
• Storage Temperature: -4 F to 140 F (-20 C to 60 C)
• Sensor Saturation Time: 8 Seconds *varying conditions may delay saturation time
• Sensor Operating Range: -40 F to 221 F (-40 C to 105 C)
• Temperature Accuracy:
• .45 F at 77 F / .25 C at 25 C
• 1.8 F (-40 F to 221 F) / 1 C (-40 C to 105 C)
