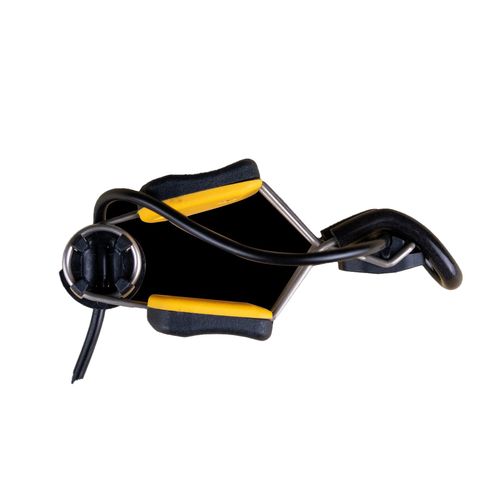

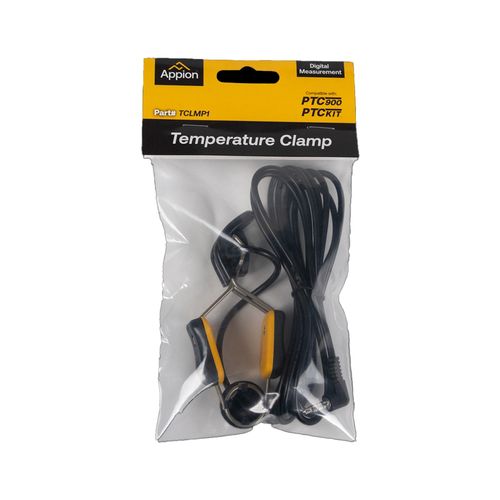

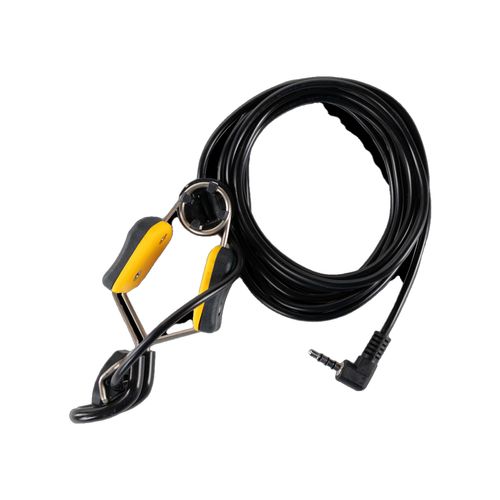

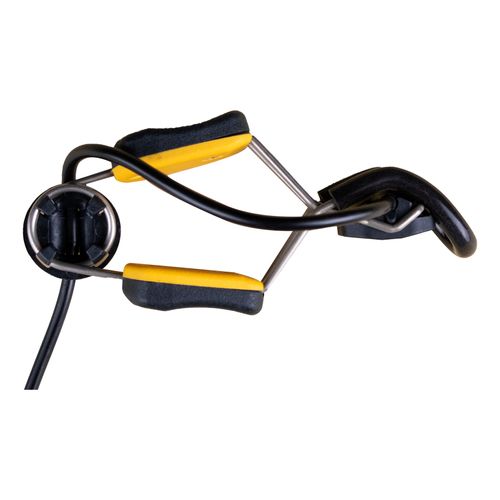

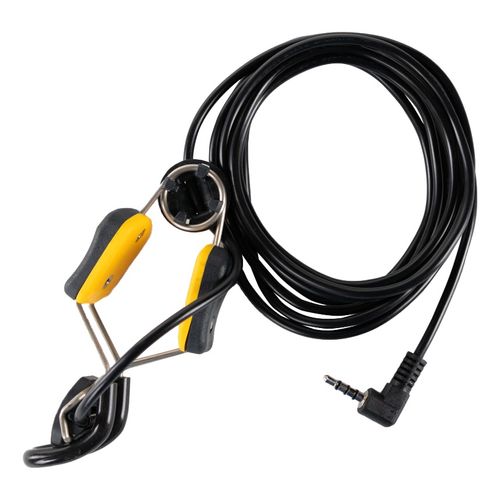

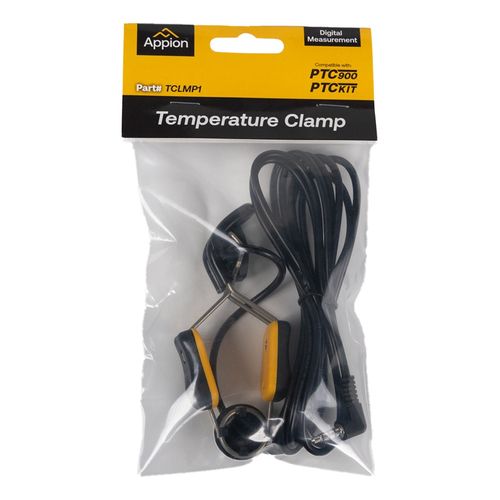

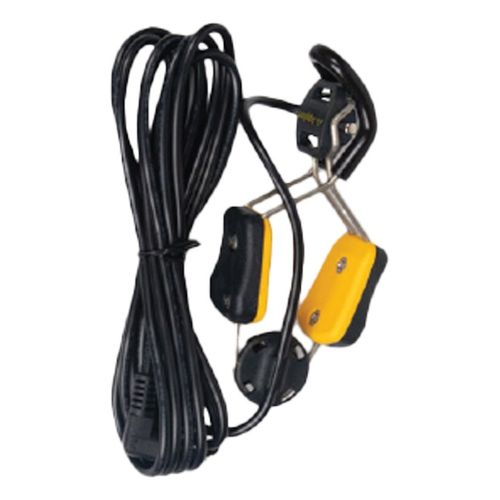

Temperature Clamp w/ Probe

PTC900 Compatible Temperature Clamp: Precision Monitoring Made Easy

Introducing the PTC900 compatible Temperature Clamp - The Temperature Clamp features minimal thermal mass and a thermally isolated contact sensor that aids in improved response times and highly accurate temperature readings. Capable of fitting pipes ranging in diameter from  inch to 1  inches, it also has a detachable temperature sensor that makes it highly versatile and compatible with pipes of any size.

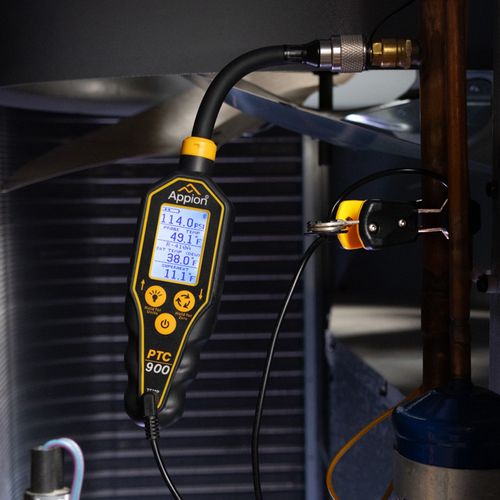

Your essential tool for accurate measurements and remote monitoring in AC/R system service. With its advanced features and intuitive controls, the PTC900 simplifies complex HVAC/R diagnostics and ensures you get the job done efficiently and effectively.

Product Features

Weight: 2.32 oz. (66 g)

Temperature Probe Dimensions:

Clamp Size: 4.17 x .98 x 1.81 in. (106 x 25 x 46 mm)

Probe Size: .86 x .78 x .39 in. (22 x 20 x 10 mm)

Pipe Size Compatibility: 1/8 in. to 1  in. (3.175 to 41.275 mm)

Cable Length: 6 ft. (1.82 m)

Water Resistance: IP67 *clamp only

Probe Operating Temperature: -4 F to 131 F (-20 C to 55 C)

Storage Temperature: -4 F to 140 F (-20 C to 60 C)

Sensor Saturation Time: 8 Seconds *varying conditions may delay saturation time

Sensor Operating Range: -40 F to 221 F (-40 C to 105 C)

Temperature Accuracy:

.45 F at 77 F / .25 C at 25 C

1.8 F (-40 F to 221 F) / 1 C (-40 C to 105 C)
