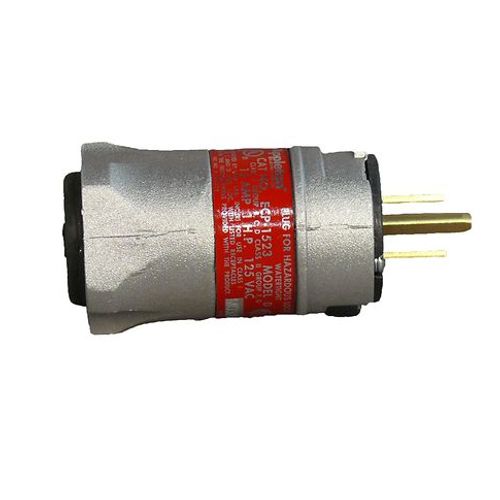

Explosion-Proof Connector Plug, 20A, NEMA 5-20P - Aluminum (125V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$140.41 each
Backorder
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Aluminum
125v
Description
–
This item is a Explosion-Proof Connector Plug, 20A, NEMA 5-20P - Aluminum (125V) manufactured by Appleton.
Features:
Features:
- Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Longer plug housing for better gripping and easier plug insertion and withdrawal
- Plugs fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- ECP plug: a twist of the plug produces audible #8221;click#8221; to indicate fast make and break of built-in switch contacts
- Twisting plug locks it in place and cannot be accidentally pulled out
- NCP plug: special neoprene watertight plug bushing accommodates flexible cord ranging from .538#8221; to .639#8221; diameter
- ECP plugs are UL Classified for use with Crouse-Hinds PowerGard#8482 and ArkGard#8482 receptacles
Specs
–
| Material: | Aluminum |
|---|---|
| Type: | 3-Pole |
| Product Type: | Plug |
| NEMA Rating: | 5-20P |
| Voltage: | 125v |
