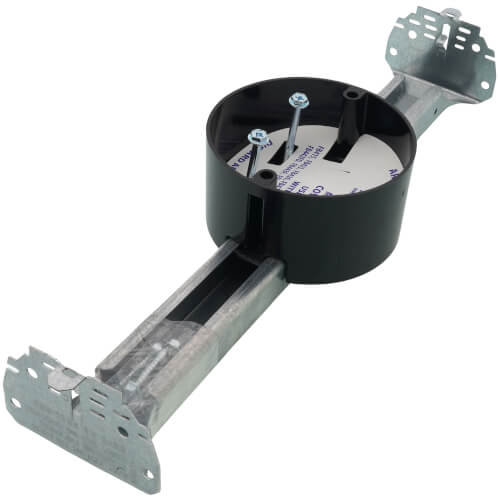

23.0 Cubic Inch Ceiling Fan and Fixture Mount, Steel Adjustable Bracket w/ Plastic Box for Between Joists in New Construction

Arlington’s low cost, economical steel fan/fixture bracket with plastic box delivers super-secure, versatile on-center mounting. Its steel bracket is fully adjustable to fit between joists spaced 16" to 24". The box is set for on-center mounting but the 23.0 cubic inch plastic box is positionable anywhere along bracket so you can place the fan or fixture where you want it on the ceiling. The FBR423 fan/fixture box delivers flush installation on ceilings up to 1-1/4" thick. The bracket ends are pre-set for a 1/2" ceiling. For other ceiling depths, simply bend the bracket ends along the appropriate score line engraved on the product.

Features & Benefits:

• UL rating: @ 24” on center: 70 lb fan, 90 lb. fixture, @ 16” on center: 70 lb fan; 150 lb fixture CSA rating: 50 lb fan or fixture
• Fan/fixture installation screws ship captive
• Bracket ends adjust for flush installation on ceilings up to 1-1/4” thick
• 23.0 cubic inch non-metallic box
• 2 hour fire rating
• Includes: Installed NM cable connector, mud cover, multiple KOs, four installation screws parked in place (ready for installer), and two screws for fan/ fixture bracket installation (screwed in place until removed by installer)
