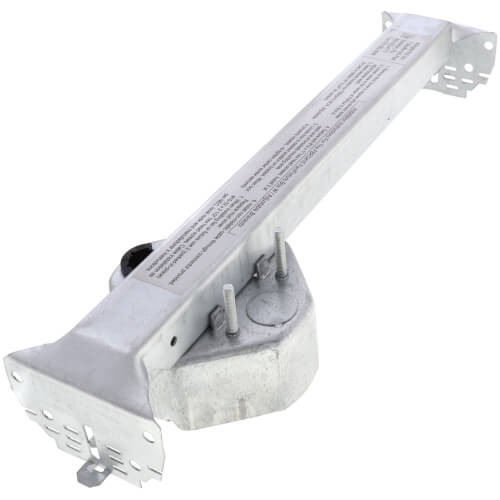

Steel Fan And Fixture Box w/ Adjustable Mounting Bracket

Arlington’s plated steel box, with adjustable bracket, mounts fans/fixtures easily and securely between joists spaced 16 inches to 24 inches on center.

Designed for flush installation on ceilings up to 1-1/4" thick, FBRS415 ships ready to install on a 1/2" ceiling. For other ceiling thicknesses simply bend the bracket along the pre-scored line for 3/4", 1" or 1-1/4" ceiling depth.

The innovative, heavy-duty alternative to bar hanger brackets that eliminates the fan wobble you can get with lighter products

Product Features

• No loose parts to misplace
• Heavy-duty plated steel construction eliminates fan wobble
• Versatile 16” to 24” on-center positioning
• Bracket preset for 1/2” ceiling thicknesses
• Works on ceilings up to 1-1/4” thick—fully adjustable! For ceiling material greater than 5/8”, convenient indicator marks allow you to bend the bracket at the scoreline matching your ceiling depth for a flush ceiling installation.
• Locator tabs included for installation ease
• Fan/fixture installation screws are parked…ready for easy fan/fixture bracket installation!
• UL rated: 70 lb fan/90 lb fixture at 24” o.c. and 70 lb fan/150 lb fixture at 16” o.c.; CSA rated: 50 lb fan/fixture
• Includes: Box/bracket, screws to adjust box position, installed NM cable connector & mud cover, four installation screws parked-in-place (ready for installer), and two screws for fan/fixture bracket installation (screwed in place until removed by installer).

Specifications

• Color: Silver
• Material(s): Plated Steel
• Cubic Inches: 15.6
• Style: For up to 1-1/4" Ceiling Thickness
• Trade Size: 15.6 cu. in.
