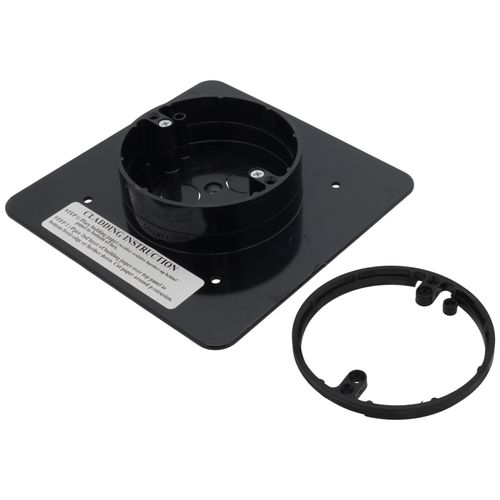

6-3/4" Non-Metallic Flange Box For 1/2" or 1-1/4" Flat and Stucco Surfaces

Non Metallic flanged fixtured hand box. For New construction. For 5/8 wall finish thickness can convert up to 7/8 wall finish thickness.

Extra wide flanges prevent water and air intrusion, no need for gaskets or caulking. Use for mounting coach lights on stucco and/or flat siding. For new construction.

Product Features

• Large 20 cubic inch volume
• Made of high strength polycarbonate
• Up to a 10 lb fixture rating
• Converts FAST for use on any cladding system up to 1-7/8”!
• Wall mount one piece design for new installations
• Easily converts for 5/8” finish thicknesses by removing back and reinstalling on the opposite side
• Extra wide flanges help meet the International Energy Conservation Code by creating a protective barrier against air and water infiltration. No gaskets or caulking required.
• Add extension ring for 7/8” thickness
• Ships pre-assembled, ready for use with 1-3/8” finish or cladding thicknesses

Specifications

• Size: 6.750"
• Color: Black
• Material(s): High Strength Polycarbonate
• Application: Pan Box
• Load Rating: 10lbs (Fixture)
• Siding Type: Flat or Stucco
• Volume: 12.8in3 (1-3/8"), 7.3in3 (7/8"), 4.8in3 (5/8")
