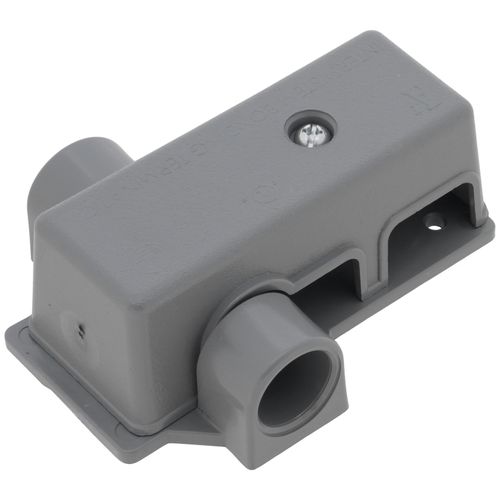

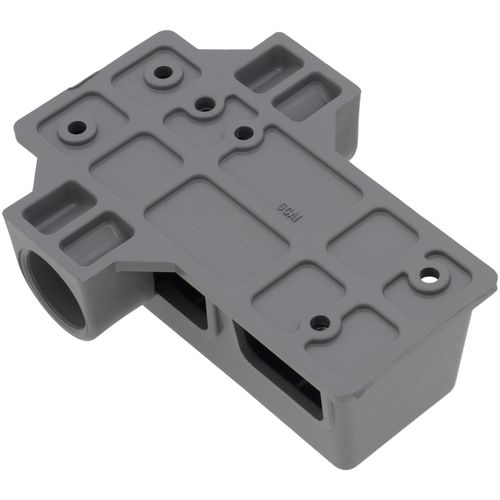

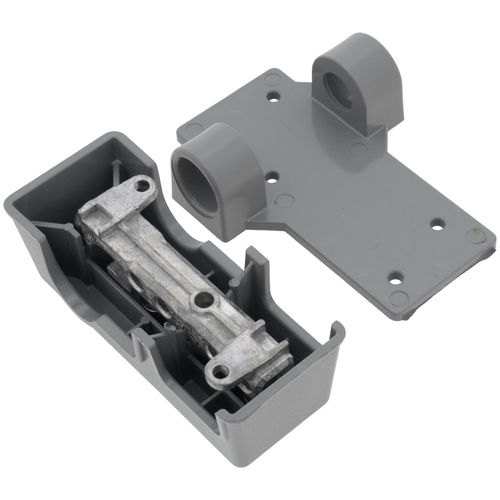

Grounding Bridge w/ PVC Adapter

Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with grey Cover. Comes with PVC adapter for 1/2" PVC pipe.

Includes

• (1) Intersystem Grounding Bridge
• (1) Cover
• (1) Conduit Adapter Plate
• (1) #10-24 x 1" Long Screw for Cover

Features:

• Application Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
• Equipment Grounding Conductor: #6 to #2 Copper or Aluminum - Solid or Stranded
• Grounding Electrode: #6 to #2 Copper or Aluminum - Solid or Stranded
• Intersystem Bonding and Grounding Conductors: #14 to #4 Copper or Aluminum - Solid or Stranded
• Pipe Size: 1/2" PVC Conduit
• Termination Points: (4) Four
• Trade Size: #6 to #2 Grounding Electrode

Specifications

• Weight: 0.575 lbs/each
• Height: 3.461"
• Width: 4.575"
• Color: Silver
• Material(s): Zinc (Bridge) / Paintable Plastic (Cover)
