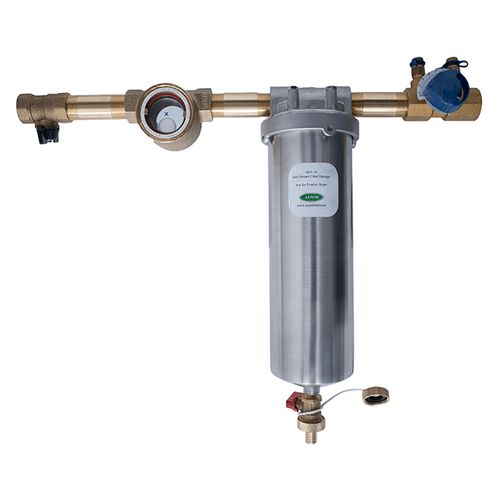

Hydronic Side Stream Filter Package w/ 3/4" FNPT Connection & 10" Filter

Overview:

Axiom's Hydronic Sidestream Filter Package delivers effective ongoing protection against the damaging effects of debris in all types of heating and cooling systems. Monitoring and maintaining clean hydronic system fluid has never been easier.

Features:

• Double O-ring on filter housing for reliable leak free cartridge replacements
• Ball valve drain with hose connection and cap ensures safe fluid handling
• Buoyant TPX ball movement can be seen at low flow rates less than 1 gpm
• Comes with standard DOE 25 micron cotton wound filter cartridge (5 micron filters available)
• Two tempered borosilicate glass windows gives better fluid visibility
• Manual balance valve provides flow metering, flow balancing with memory stop and filter cartridge isolation. Integral manual air vent prevents the introduction of air during cartridge change
• Filter vessel can be used for chemical dosing. Up to 0.4 Gallon (1.5 litre)
• Brass and stainless steel construction
• Reduces equipment maintenance cost and extends system life
• Max. Temperature: 200 F (93 C)
• Max. Pressure: 125psi (860kPa)
• Connections: FNPT 3/4"
• Compatible fluids: Water, Propylene glycol, Ethylene glycol, Methanol (50%), Ethanol (50%)
