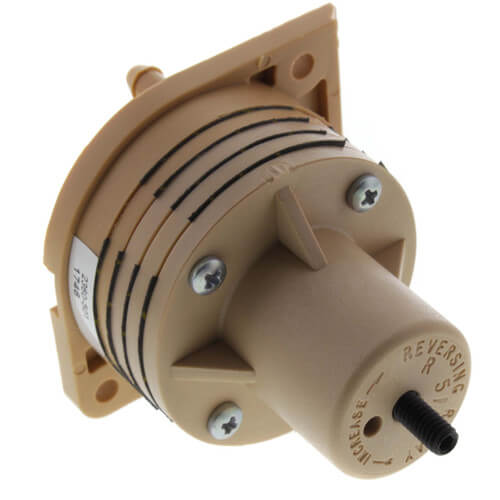

Pneumodular Reversing Relay

The 2360-501 Reversing Relay is a proportioning device designed for use in pneumatic control systems where the application requires the reversing of a proportional signal from a controlling device. The 2360-501 branch line pressure decreases in direct proportion to an increase in input signal pressure and also amplifies the volume of air available for the final control device, thereby minimizing system lag.

The unit is factory adjusted to decrease the branch line pressure from 16 psig to 0 psig as the signal pressure increases from 0 psig to 16 psig. A bias adjustment is provided to retard or advance the output signal if required by a particular application.

Features

• Action: Proportional - reverses input signal
• Main Air Pressure: 20 psig normal operating, 30 psig maximum.
• Air Capacity: 8 SCFH.
• Air Consumption: 29 SCIM.
• Maximum Ambient Temperature: 140°F.
• Mounting: Designed for use on 22-120 TAC Pneumodular manifold socket. This device can also be surface mounted by using the appropriate mounting bracket. (See "Mounting Instructions").
• Air Connections: barbed nipples for 1/4" O.D. polyethylene or 5/32" I.D. polyurethane tubing.
• Material: glass-filled nylon.
