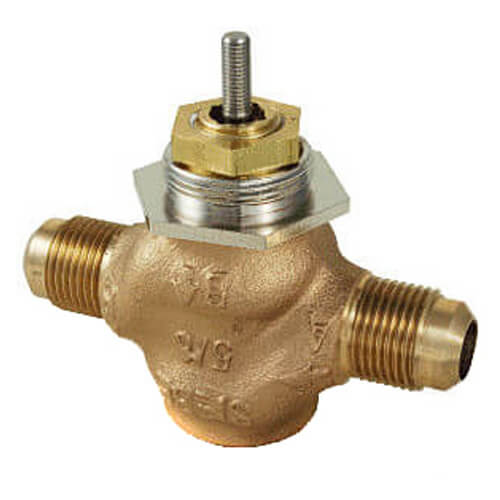

5/8" O.D 45-Degree SAE Flared Valve (4.4 cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$140.79 each
Backorder
This item replaces: VB-7222-0-4-4
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4.4 Cv
5/8"
Flare Connection
Description
–
VB-7222 series single seat, stem up closed, two-way
valves control water from 20 to 281°F (-7 to 138°C) or
steam to 281°F (138°C) maximum in heating or air
conditioning systems. They are used for two-position or
proportional control applications. Valve assemblies
require an actuator and a valve linkage that must be
purchased separately.
Features
Features
- 5/8" O.D., 45° SAE flared end fittings.
- Equal percentage flow characteristics for twoposition or proportional control of water or steam.
- 250 psig pressure rating per ANSI Standards (B16.15-1985) for cast bronze bodies.
- Spring-loaded TFE packing.
Specs
–
| Flow Capacity (Cv): | 4.4 |
|---|---|
| Size: | 5/8" |
| Connection Type: | Flare |
| Valve Action: | Stem up to close |
| Flow type: | Equal Percentage |
