Description

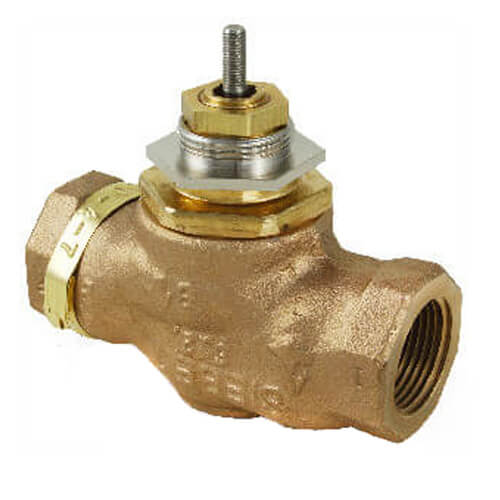

VB-7224 series single seat, stem up closed, two-way valves control water from 20 to 281°F (-7 to 138°C) or steam to 281°F (138°C) maximum in heating or air conditioning systems. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Features
  • Valve sizes 1/2" to 2"
  • 250 psig pressure rating per ANSI Standards (B16.151985) for screwed cast bronze bodies
  • Spring-loaded TFE packing
  • Union sweat end connections
Hide Description
Manuals (1)
Specs
Flow Capacity (Cv):

40

Size:

2"

Connection Type:

Sweat

Union

Valve Action:

Stem up to close

Flow type:

Equal Percentage

×
