Description

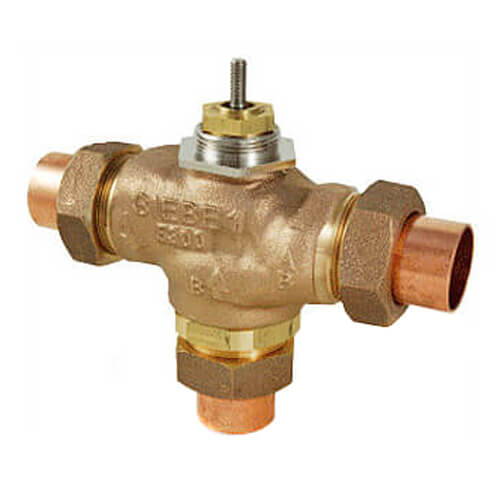

VB-7314 series three-way mixing valves control hot or chilled water from 20 to 281°F (-7 to 138°C) in heating or air conditioning systems. These valves must be piped with two inlets ("A" and "B" ports) and one outlet ("AB" port). They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Features
  • Valve sizes 1/2" to 2"
  • 250 psig pressure rating per ANSI Standards (B16.15-1985) for screwed cast bronze bodies
  • Spring-loaded TFE packing
  • Union Sweat End Connections
Read more
Manuals (2)
Specs
Flow Capacity (Cv):
41
Size:
2"
Connection Type:
Sweat
Body Pattern:
3-Way
Application:
Point of Source
Max Temp (F):
281°F
Min Temp (F):
20°F
×
