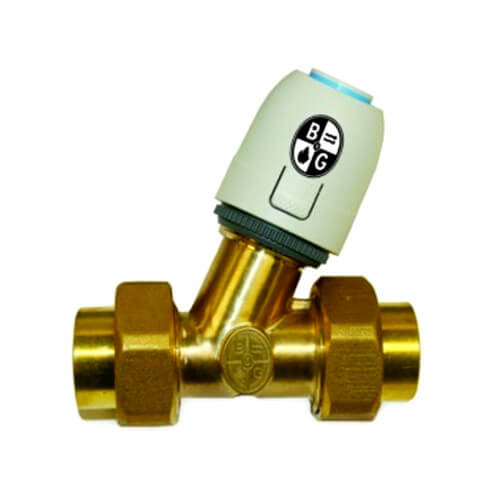

SZV-050N-4WE - 1/2" Threaded Zone Valve (4-Wire)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$198.56 each
Backorder
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Threaded Connection
1.8 Cv
1/2"
24V
Normally Closed
Description
–
The Bell & Gossett Snap Zone Valve is an on/off zone valve for residential and light commercial use. Snap Zone valves are precision engineered four wire thermoelectrically operated valves designed for heating and cooling systems.
The valve opens and closes based upon the voltages applied to the actuator. Use the Bell & Gossett Snap Zone Valves to speed installation time and reduce callback times to customers.
The actuator can be installed or removed at any angle on the adapter ring. The compact design and universality in the actuator mounting position allows for easy installation in the most difficult positions.
Features:
Note: Image may not be actual representation of item.
The valve opens and closes based upon the voltages applied to the actuator. Use the Bell & Gossett Snap Zone Valves to speed installation time and reduce callback times to customers.
The actuator can be installed or removed at any angle on the adapter ring. The compact design and universality in the actuator mounting position allows for easy installation in the most difficult positions.
Features:
- Soft close technology suppresses water hammer
- Silent Actuator Operation
- Internal components can be removed without having to remove unit from the system.
- 360 Degree Actuator Installation
- One Handed Actuator Installation
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Zone Valve |
|---|---|
| Application: | Zoning |
| Size: | 1/2" |
| Connection Type: | Threaded |
| Material: | Brass |
| Voltage: | 24V |
| Position: | Normally Closed |
| Hertz: | 60 |
| Operating Temp Range: | 32°F to 212°F |
| Max Pressure (PSI): | 240 |
| Flow Capacity (Cv): | 1.8 |
| Wiring: | 4-Wire |
| Body Pattern: | 2-Way |
