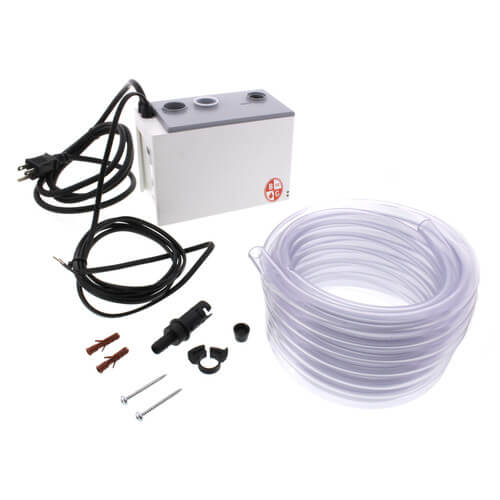

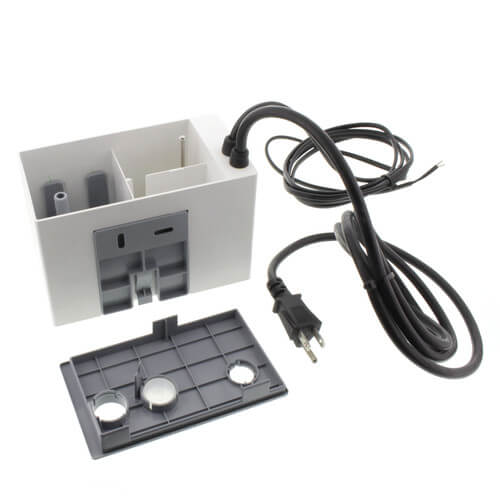

LS Condensate Removal Pump (100-140V, 1.98 GPM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
6098B0000 has been discontinued
Discontinued July 21, 2022
This product was discontinued by the manufacturer.
MANUALS (3)
Product Highlights
–
140v, 100V
1.98 MAX GPM
150 MAX PSI
ABS
0.2 Amps
0.184 Gallons
Description
–
The LS condensate removal pump is an energy efficient lifting station that uses permanent magnet, ECM (electronically commutated motor) technology. The LS condensate removal pumps are designed specifically for use in applications where the removal of condensate fluid is not possible.
The condensate pump LS saves energy, has a very low noise level and virtually guarantees trouble free operation.
Features:
The condensate pump LS saves energy, has a very low noise level and virtually guarantees trouble free operation.
Features:
- Condensate removal for condensing boilers and air conditioning/cooling systems
- Drains condensate into a pressure hose and a control which starts and stops the pump
- Indicator lights showing status of the unit
- Alarm relay if there is a problem
- Long, quiet operation
- Small footprint
- Low energy consumption
- Resistant to blockage
- Easy and ready to install
- Fully automatic
Specs
–
| Material: | ABS |
|---|---|
| Max Pressure (PSI): | 150 |
| Max Operating Temp: | 140°F |
| Phase: | 1 |
| Voltage: | 140v 100V |
| Amperage: | 0.2 |
| Power Consumption: | 20W |
| Tank Volume: | 0.184 Gallons |
| Usable Volume: | 0.132 Gallons |
| Noise Level (dBA): | 46 |
| Max Flow (GPM): | 1.98 |
| Max. Pump Head: | 14.9" |
| Min Ambient Temp (°F): | Non-Freezing |
| Dimensions: | 8.46" x 8.46" x 7.09" |
| Weight (lbs): | 3.5 lbs |
