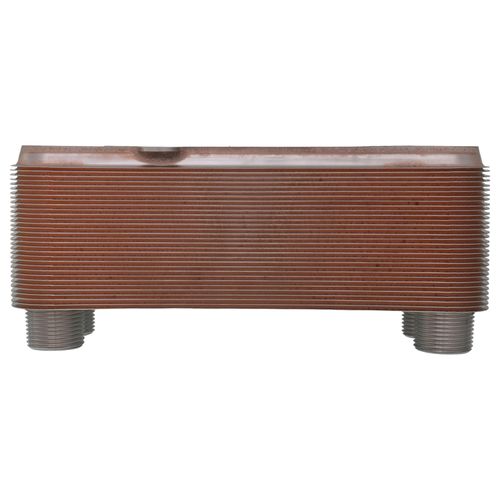

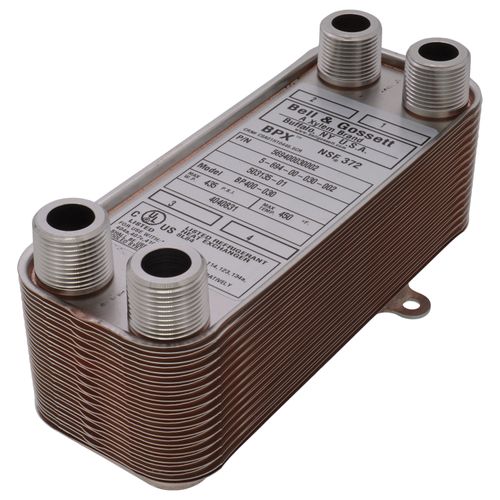

175,000 BTU/Hr Hydronic BPX Brazed Plate Heat Exchanger With Mounting Tabs
Magnifying glass
Hover image to zoom

175,000 BTU/Hr Hydronic BPX Brazed Plate Heat Exchanger With Mounting Tabs

SKU:
BP400-30MT
Rating:
(0)
Q&A:
(0)
175,000 BTU/Hr Hydronic BPX Brazed Plate Heat Exchanger With Mounting Tabs
Magnifying glass
Hover image to zoom
$517.16 each
Backorder
Backorder
Get it Tue, Mar 18 - Tue, Apr 15
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Width (Inches)
3-1/2" Width
Product Highlight: Height
8-1/5"
Product Highlight: Depth (Inches)
3-4/5" Depth
Product Highlight: Max Pressure (PSI)
435 MAX PSI
Product Highlight: Thread Type
Male Thread Type
Product Highlight: BTU Output
175000 Max BTUs

Description

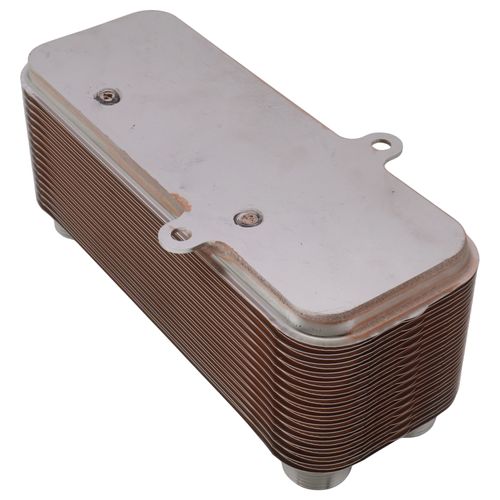

B & G type Hydronic BPX brazed plate heat exchangers offer a unique mounting system and the highest level of thermal efficiency and durability in a compact, low cost unit. The unique integral mounting tabs and connection locations allow for easy installation to any hydronic heating panel without the need or cost of a separate mounting bracket. The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design. The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature.

Technical Specifications:
  • BTU/Hr: 175,000
  • Design Pressure: 435 PSIG (30 bar)
  • Design Temperature: -310 F min, 450 F max
  • Number of Plates: 30
  • Cover Plates: Stainless Steel ASTM 316L
  • Channel Plates: Stainless Steel ASTM 316L
  • Brazing Material: Copper
  • Weight (lbs): 5.4

Applications:
Radiant Floor Heating:
  • Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 6.2 GPM, Pressure Drop: 8.6 PSI
  • Radiant Floor Side: Water 120 Degree F Supply, 100 Degree F Return, Flow: 6.1 GPM, Pressure Drop: 5.9 PSI

Snow Melt Application:
  • Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 6.2 GPM, Pressure Drop: 8.7 PSI
  • Snow Melt Side: 40% P.G. 130 Degree F Supply, 100 Degree F Return, Flow: 4.3 GPM, Pressure Drop: 3.5 PSI

Domestic Water Heating:
  • Boiler Side: Water 180 Degree F Supply, 130 Degree F Return, Flow: 2.5 GPM, Pressure Drop: 1.6 PSI
  • Domestic Water Side: Water 50 Degree F Supply, 140 Degree F Return, Flow: 1.3 GPM, Pressure Drop: 0.3 PSI

Specs

Number of Plates:

30

Width (Inches):

3-1/2"

Height:

8-1/5"

Application:

Heating

Depth (Inches):

3-4/5"

Max Pressure (PSI):

435

Type:

DHW

Snow Melt

Thread Type:

Male

Brazing Material:

Copper

BTU Output:

175000

Cover Plate Material:

Stainless Steel

Min Temp (F):

-310°F

Temperature Range (F):

-310°F - 450°F

Max Temp (F):

450°F

Thread Size:

3/4"
