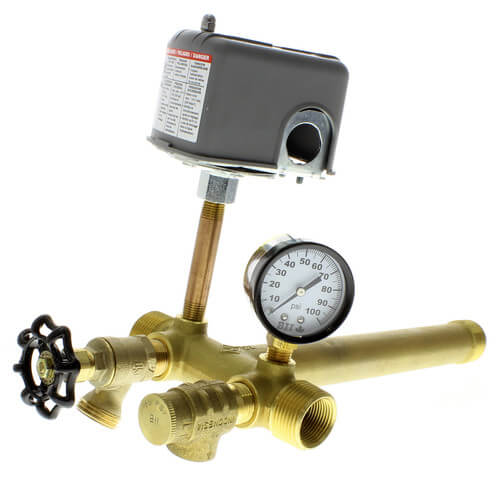

NOTE: Image depicted may not be reflective of actual package
This Solid Brass Tank Tee Package consist of:
- (1) TTS100-10
: 1" x 10" Center to End Solid Brass Tank Tee (Lead Free)
- Tank Connection: 1" MPT
- In-Line Connection: 1" MPT x 3/4" FPT
- Centre End Length: 10"
- Drain/Relief Ports: (2) 1/2"
- Accessory Ports: (2) 1/4"
- (1) BDM050
:1/2" MPT Boiler Drain, Male Threaded (Lead Free)
- (1) PG-100NL
: 1/4" NPT, 2" Dial, Lower Mount No Lead Pressure Gauge (0-100 PSI)
- PSI Range: 0-100
- Connection: Lead Free Brass
- Operating Temperature: 32°F-104°F
- (1) 9013FSG2J24: Pressure Switch
- Standard Duty Switch
- Pressure Setting (Close-Open): 40-60
- Connection: 1/4" FPT
- (1) BRN025-300
: 1/4" x 3" Brass Nipple
- (1) RFV050-75
:1/2" Brass Relief Valve (75 PSI)
- Size (In): 1/2" MPT
- Size (Out): 1/2" FPT
- Factory Pressure Setting: 75 PSI
- Brass Body
- Max. Operating Temperature: 140°F
