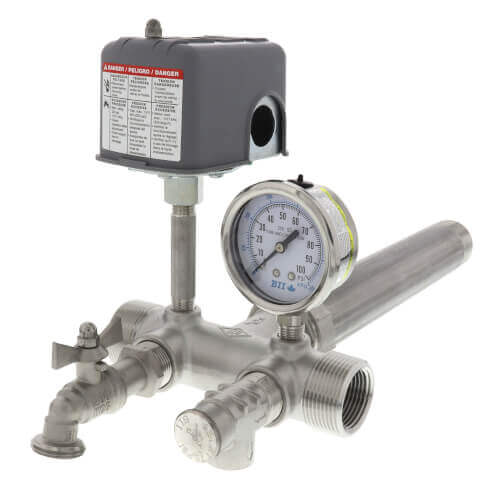

1" X 10" MPT Stainless Steel Union Tank Tee Package, 40-60 PSI, Check Valve, Ball Valve, 90 El

The 1" MPT Stainless Steel Union Tank Tee Package consist of:

1) Tank Tee: 07ST-25-2U

• Tank Connection: 1" MPT
• In Line Connection: 1" MPT X 3/4" FPT
• Centre End Length: 10"
• Drain/Relief Ports: (2) 1/2" FPT

2) Hose Bibb: SSHB52-05

• Inlet Connection: 1/2" MPT
• Outlet Connection: 3/4" GHT
• Max Pressure Rating: 200 PSI
• Max Temp Rating: 248°F (120°C)

3) Pressure Gauge: PGS-100-G

• 2" Dial Stainless Steel Pressure Gauges- Liquid Filled- Lower and Centre Back Mount
• Dual Range: 0-100 PSI
• Accuracy: 3% - 2% - 3% Grade B
• Stainless Steel Internals and Connection
• Maximum Media Temperature: 140°F (60°C)
• Ideal for use in corrosive environments

4) Pressure Switch: FSG2J24

• Connection:1/4" MPT
• PSI: 40 - 60 PSI
• Motor Capacity: 1.5HP @ 120V / 2HP @ 230V

5) Nipple: SS304N-0230

• Size: 1/4" x 3"

6) Relief Valve: SSRVN05-100

• Size In: 1/2" MPT
• Size Out: 1/2" FPT
• PSI: 100 PSI

7) Check Valve: 17CVSS-100

• Size: 1"
• Temperature Max: 180°F (80°C)
• Pressure Max: 200 PSI

8) Additional Nipple: SS304N-0720

• Size: 3/4" x 2"

9) Ball Valve: SSBV800-07

• Size: 3/4"
• Connection Type: Threaded x Threaded
• Maximum Pressure Rating: 800 PSI

10) 90° ST Elbow: SS304SE-07

• Size: 3/4"
