230 CFM AI Series Heat Recovery Ventilator w/ VIRTUO Technology
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Lift Gate
Product Highlights
Description
From the leader in residential indoor air quality this Broan AI Series HRV features VIRTUO technology providing the easiest installation on the market. This fresh air system has the quickest installation in its category saving the installer up to 20 minutes, thanks to auto-balancing and self-adjusting technology. The built-in LCD screen provides real-time airflows, power consumption and acts as a diagnostic error tool. This technology not only eliminates the most complex part of installation, saving the contractor time but it also significantly reduces the number of call-backs. This product delivers consistent results with airflow verification providing the most efficient and reliable solution on the market regardless of dwelling type. Delivering 231 CFM our powerful, efficient and proprietary blower fan motors make it the ideal solution for larger homes. Installing a Heat Recovery Ventilator (HRV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable. The standard MERV 8 filter offers a more effective design than units in the market with larger capture area and will save the homeowner money with the reusable, easy to wash design. At Broan-NuTone we believe that better quality of air means better quality of life.
Product Features
- Quick setup with VIRTUO technology, which does the airflow verification and balancing for you, eliminating a complex part of the installation process. Set it and forget it
- Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintains the quality initial configuration in all dwelling types
- Installing a Heat Recovery Ventilator (HRV) improves indoor air quality of your home by providing a supply of tempered, filtered outdoor fesh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
- Equipped with powerful and energy efficient ECM PMSM motors delivering up to 231 CFM. Our proprietary design is the most reliable on the market
- Superior HRV core performance and durability reaching up to 78% SRE 32F at 66 CFM and Certified at 67% SRE -13F at 81 CFM
- Delivers superior air quality with an included MERV 8 filter and optional HEPA filtration available

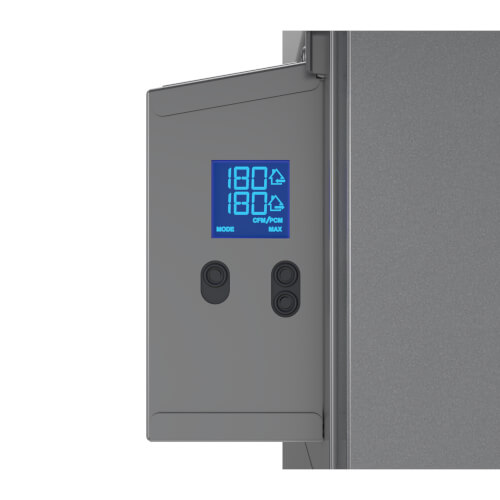

- Integrated LCD screen to easily set the desired CFM. Display real time airflows, power consumption and act as diagnostic error tool
- Universal platform offers both top & side port configurations to accommodate different installation locations
- Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
- Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
Specs
| Min Airflow (CFM): | 65 |
|---|---|
| Max Airflow (CFM): | 231 |
| Voltage: | 120v |
| Hertz: | 60 |
| Amperage: | 3.6 |
| Wattage: | 270 |
| Duct Size: | 6" |
| Port Location: | Side Top |
| Warranty: | 5 Year (Parts) 5 Year (Core) |
